The Brewtools B25 is part of Brewtools’ new generation of premium all-in-one brewing systems, designed for brewers who want a highly capable, modern brewing platform with precise control and a clean, practical workflow.

Available for pre-order from 1st July, with the first systems expected to ship in late September, the B25 brings together Brewtools’ latest brewing technology in a compact format. With indirect heating, an integrated cooling jacket, FCS Brewing control and Brewtools’ patented CleanCore sanitary 3-way valve, this system is built for brewers who want consistency, flexibility and a more refined brew day.

A New Generation of Brewtools Brewing Systems

The new Brewtools brewing system range has been designed around a clean, integrated approach to brewing. Each system combines heating, pumping, control, cooling and sanitary valve design into one modern brewing platform.

The B25 is the most compact model in the range, making it ideal for small-batch brewing, recipe development, pilot batches and brewers working with limited space. With batch sizes from 5 to 20 litres and a total volume capacity of 28 litres, it offers serious Brewtools performance in a practical table-top size.

Indirect Heating and Integrated Cooling

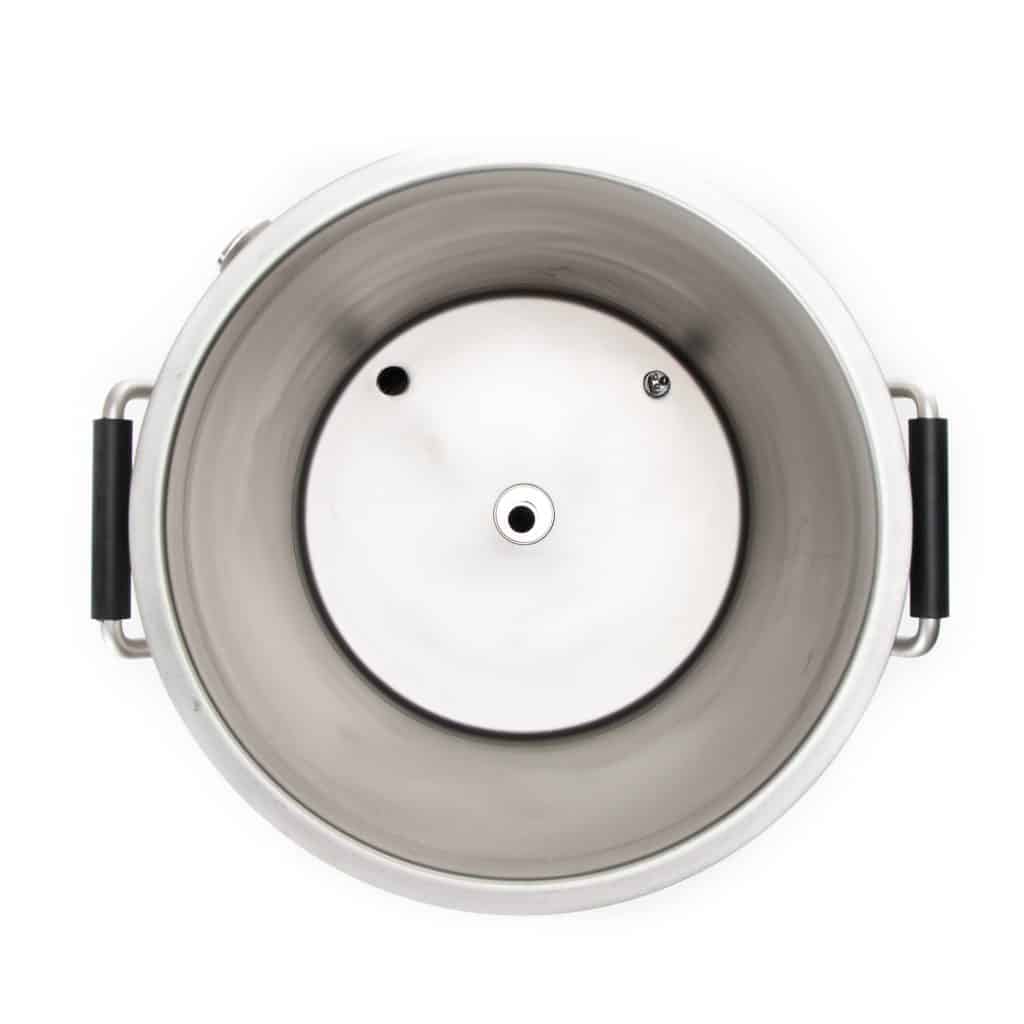

The B25 uses indirect heating with a flat bottom design, helping deliver controlled heat across the base of the vessel. This is paired with an integrated cooling jacket, allowing the system to be cooled without placing a traditional immersion chiller inside the kettle.

This gives a cleaner, more practical brew day and helps keep the internal brewing space clear during chilling.

Powered by FCS Brewing

At the centre of the system is Brewtools’ FCS Brewing control platform, operated through a large 8 inch IPS touchscreen. This gives clear, modern control over the brew day, with Wi-Fi connectivity and available controller ports for future expansion.

The B25 is also fitted with the Brewtools FCS Brew Pump, giving strong performance for recirculation, transfer and general brewing use.

Patented CleanCore Sanitary 3-Way Valve

The B25 features Brewtools’ patented CleanCore sanitary 3-way valve. This gives the system a clean, practical and sanitary flow path, helping make recirculation, transfer, draining and cleaning more straightforward.

Key Features

Compact Brewtools all-in-one brewing system

Part of Brewtools’ new generation brewing system range

Designed for 5 to 20 litre batch sizes

28 litre total volume capacity

Indirect heating with flat bottom design

Integrated cooling jacket

Powered by FCS Brewing

8 inch IPS touchscreen controller

Patented CleanCore sanitary 3-way valve

Brewtools FCS Brew Pump

Wi-Fi connectivity, 2.4 GHz 802.11ax/b/g/n

304 stainless steel construction

TC34mm valves, fittings and connections

Overheat protection, dry-boil protection and liquid detection

5 year warranty

Available Controller Ports

1 CAN bus port, +24V

1 external high level switch port, not currently used on the B25

1 mash temperature sensor input, sensor sold separately

Specifications

Batch Size: 5-20 litres

Total Volume Capacity: 28 litres

Grain Capacity: 4.8kg

Heating Power: 2000W, 230V

Watt Density: 4.18W/cm²

Control System: FCS Brewing with 8 inch IPS touchscreen

Connectivity: Wi-Fi 2.4 GHz 802.11ax/b/g/n

Pump: Brewtools FCS Brew Pump, 30 l/min, 4.5m head

Materials: 304 stainless steel, food grade silicone, EPDM, POK

Valves, Fittings and Connections: TC34mm

System Height: 635mm

Tank Dimensions: Ø300mm x 400mm high, 28.27 litres

Malt Pipe Dimensions: Ø225mm x 345mm high, 13.72 litres

Packing Dimensions: 440 x 440 x 700mm

Packing Weight: TBC

Safety Features: Overheat protection, dry-boil protection, liquid detection

Warranty: 5 years

What’s in the Box?

B25 brewing system with malt pipe and lid

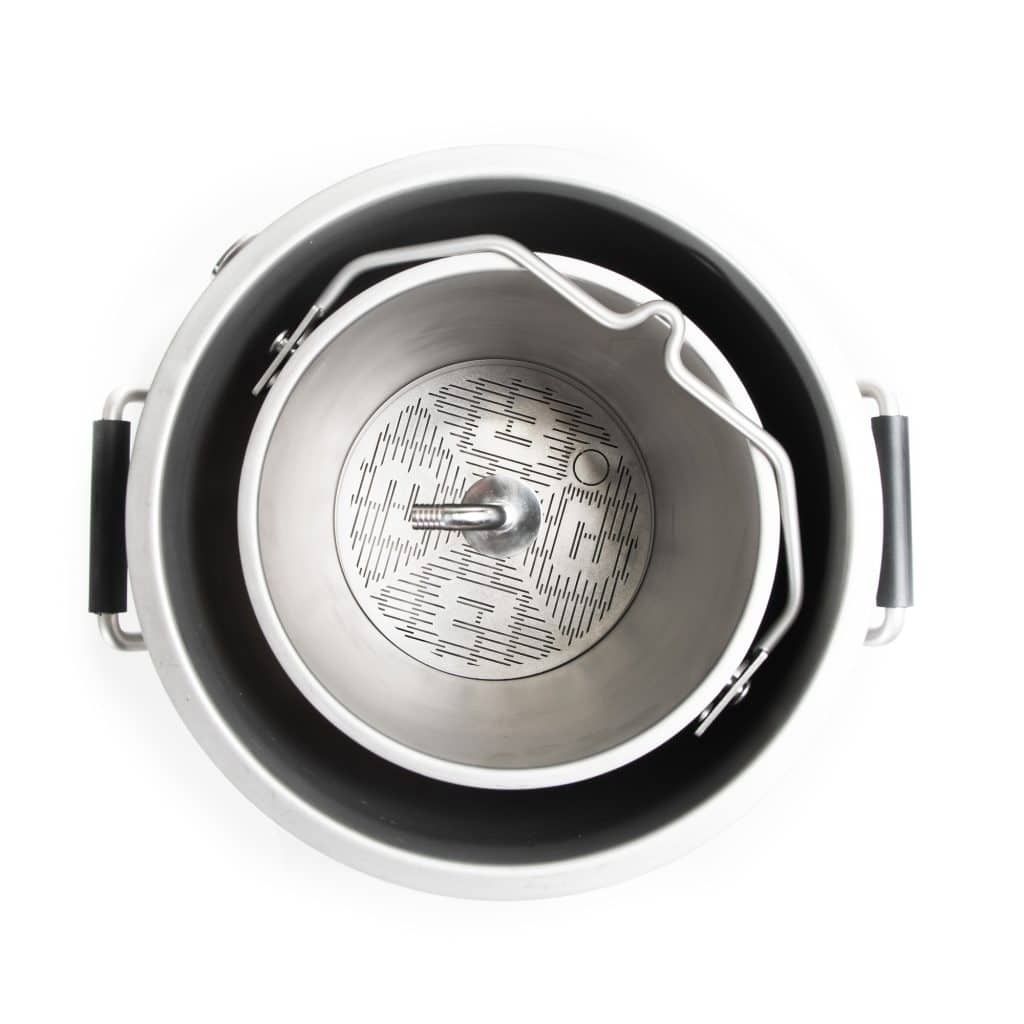

Laser cut filter

Malt pipe draining holder

Silicone tubing for draining and recirculation

Parts and accessories for assembly

UK 13A Power Cable, 2m to LP20

Pre-Order Information

The Brewtools B25 Brewing System is available for pre-order from 1st July. The first systems are expected to ship in late September.

If ordered with other items, your order may be held until the B25 is ready to ship. To receive other items sooner, please place a separate order.
