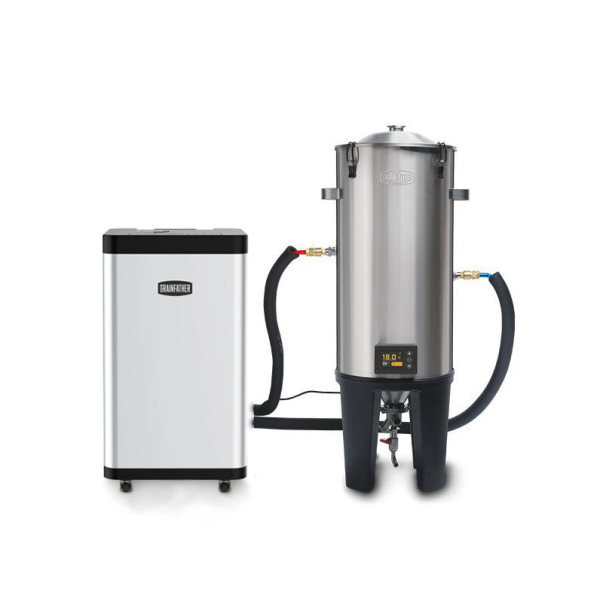

THIS BUNDLE INCLUDES

1 x Grainfather GC2 Glycol Chiller

1 x 3l Glycol

1 x Connection Kit

1 x Grainfather GF30 Conical Fermenter

GC2 Specification:

Control your fermentation temperature accurately every time!
Temperature control is one of the most crucial elements for producing a good quality beer. It needs to be regulated and stable throughout the whole fermentation process to ensure the yeast doesn’t get stressed and ferments correctly to get the right flavour profile.

With the ability to individually power and control the temperature of up to four Grainfather Conical Fermenters, each with their own fermenting schedules, the Grainfather Glycol Chiller is the perfect addition to ensure craft brewery-like results.

With the addition of the Glycol Chiller, your system is operating at the ultimate level and you are even able to cold crash and lager. The cooling sleeve is located in between the two stainless steel walls of the Conical Fermenter which is then hooked up to the Glycol Chiller. Temperature is dialed into the digital temperature controller and the liquid travels through this sleeve, cooling the stainless steel which in turn cools the beer in the fermenter. The cooling sleeve never comes into contact with the beer, is completely concealed and does not need cleaning or sanitising – a true innovation for a fermenter on this scale.

Features:

Allows you to cold crash 23 L of wort to as low as 4-6ºC. Minimum temperature will vary based on external factors such as ambient room temperature, the number of fermenters connected and other environmental conditions.

Cools and powers up to 2 Conical Fermenters at different temperatures and fermenting schedules.

What’s Included:

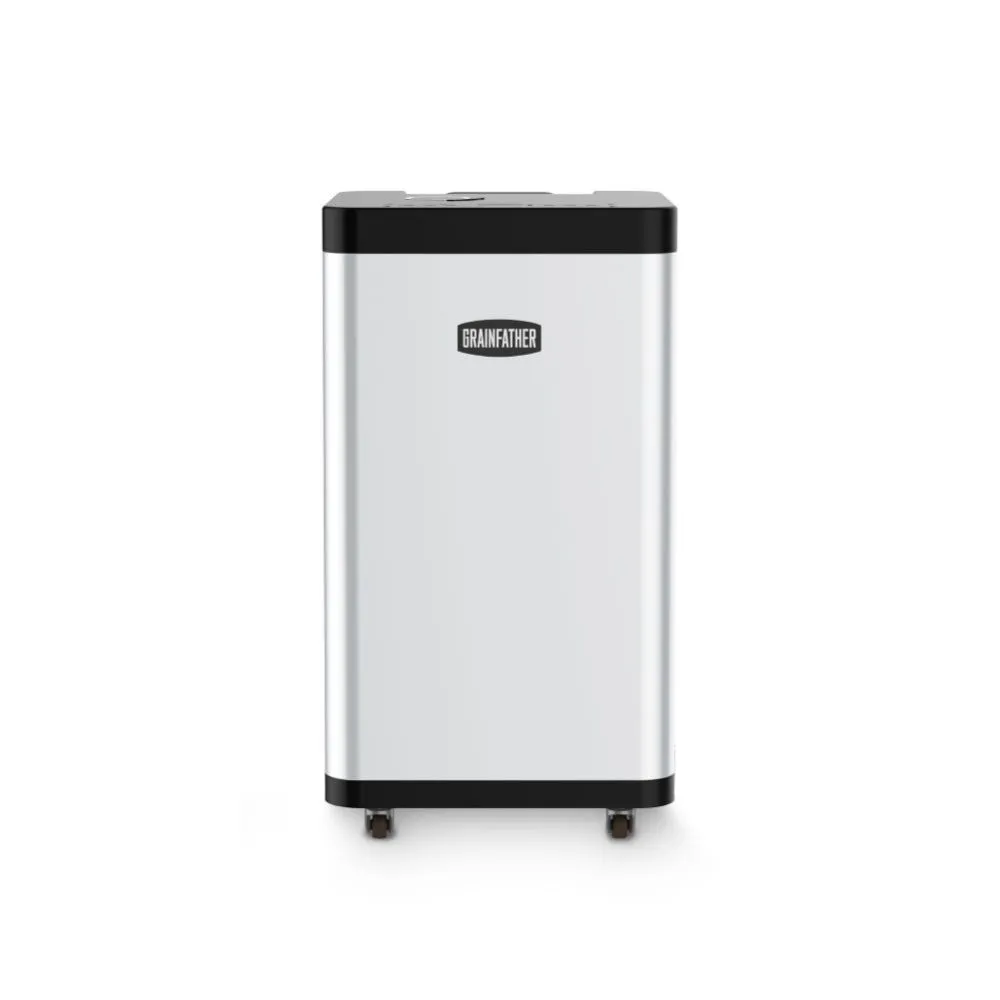

GC2 Glycol Chiller

Wall outlet power cord with plug, Euro plug will be included if sending into Europe

2 x brass couplers (with self-sealing hose connections)

2 x 2 m insulated hoses

1 x Glycol Funnel

Glycol

Specifications:

SIZE: 583 x 320 x 363mm (23 x 12.6 x 14.6”)

WEIGHT: 19.5kg (71.5lb)

CAPACITY: 3L (0.8 US Gal) glycol tank

POWER NZ/AU/EU/UK: 180W, 220V

CONNECTIVITY : None*

*Wi-Fi control available when used with G SERIES fermenters or the G

Grainfather offers a 3 year warranty on the GC2 Glycol Chiller from date of purchase.

Instructions – GC2

PLEASE NOTE: Due to the size, weight and fragility of this product it is not shipped using the courier network, these are shipped using pallet delivery. Please disregard any automatically generated emails from the website and tracking details. Pallet delivery will be arranged as soon as possible, delivery time varies according to location but UK customers can usually expect delivery in 2 days from ordering. Any queries please email [email protected]

Be sure to check out our YouTube channel for videos to help you and your home brewing

GF30 Conical Fermenter PRO from Grainfather

Wireless Connectivity

The Conical Fermenter Pro comes with an upgraded built-in controller with wireless connectivity and improved digital display. This means yoU can now connect the controller to the internet and Grainfather App, and track fermentation with automatic alerts and notifications from wherever – at work, playing golf, fishing…anywhere with an internet connection.

Full list of features for the Conical Fermenter Pro:

• New controller that’s built into the fermenter with wireless connectivity and improved digital display
• 30L (7 US Gal) capacity
• 304 stainless steel, double walled body, for constant and stable temperature control
• Dual valve tap for easy yeast dumping, transferring, and sampling
• 30W, 12V heating element inside the cavity of the fermenter, which heats the environment between the fermenter walls, allowing for even/controlled increase in temperature
• Connect the Cooling Pump Kit or Glycol Chiller to the integrated cooling sleeves that are welded to the two fermenter inner walls for even cooling
• 60-degree (Golden Angle) cone for optimum yeast/sediment drop down, giving you clearer beer
• Heating capabilities that can achieve up to 10˚C higher than ambient room temperature*
• When used with the Cooling Pump Kit or Glycol Chiller, cooling capabilities that can achieve as low as 4˚C*

*Results will vary depending on the ambient temperature and humidity. Efficiency can be improved when using the Conical Fermenter Pro Insulation Jacket

Ferment like never before!

The Grainfather Conical Fermenter give the brewer professional fermentation control, just like the commercial breweries. Fermentation is arguably the most important part of producing a good quality beer. A good fermentation environment starts with a clean and sterile fermenter, has a consistent controlled temperature base and exposure to oxygen is minimised.

FEATURES:

• Double Walled: A stainless steel double walled skin is filled with a thick layer of polyurethane foam for insulation. This is what keeps the wort at a constant stable temperature with minimal influence from any external environmental temperature changes, providing insulation for your fermentation that a standard jacket cannot achieve.



• Integrated Gentle Heating: In the cavity of the fermenter between the outer body and cone sits a 30 Watt, 12V heating element. Unlike standard heating elements/sources that directly heat the liquid, this heat source is designed to heat the environment in between the walls of the fermenter, which in turn heats the liquid. It is similar to controlling the temperature in a temperature controlled room. The fermenter acts as an artificial environment which can be heated, meaning the temperature is raised in an even and controlled manner which is much better for the yeast.



• Integrated Cooling Sleeve: In between the two stainless steel walls sits a cooling sleeve (also made of stainless steel). This cooling sleeve is welded onto the inner wall of the fermenter. Temperature is dialed into the Temperature Controller and as the cooling liquid travels through this sleeve, it cools the stainless steel which in turn evenly cools the beer in the fermenter. The cooling sleeve never comes into contact with the beer, it is completely concealed, built into the fermenter and never needs cleaning or sanitising – a true innovation for a fermenter of this scale.



• Easy Access to the Interior for Hassle Free Cleaning: The Grainfather Conical Fermenter has a smooth interior with no additions such as cooling coils or additional sampling valves meaning it is easy to clean and minimises the risk of infection.



• Golden Angle Conical: The conical shape of the fermenter is typical for professional breweries. Our conical has been designed with the ‘Golden Angle’ of 60º. This is the optimum angle for yeast and sediment to drop down to the bottom of the cone without getting stuck to the sides, allowing you to transfer from above the sediment line, resulting in clearer beer. The conical shape also allows for better mixing during fermentation due to the path of convention currents that it enables to occur.



• Dual Valve Tap: Make the yeast dumping, transferring and sampling process more professional with this innovative all in one valve. Sampling and transferring is done through an inlet above the sediment line, allowing for clear, sediment free beer. Easily collect your yeast from below the sediment line with the same unique valve for recultivating and pitching. The innovative design of the valve allows for this dual functionality and less cleaning for you.



• Wireless Controller: Accurately dial in a temperature and even set a temperature schedule/profile (you can set up to 4 profiles each with 5 stages). It can control the heating of the integrated heating element and the cooling with wireless connectivity and improved digital display.

What’s Included:-

• Conical Fermenter
• Fermenter Lid
• Rubber Bung
• Bubbler Airlock
• Cone Plug
• Cone Plug Seal
• 5 cm (2″) Tri Clamp
• Digital Temperature Display
• Powder Adapter and Wall Plug
• 2 m (6.5 ft) M12 3-Pin Power Cord
• Dual Valve Tap
• Wireless Controller

SPECIFICATIONS:

• 304 Stainless Steel Body (polished inner and brushed outer)
• 30 L (8 US Gal) capacity (volume markings on inner body up to 25 L (7 US Gal)
• 20 – 30W, 12V heating power
• 3.8 cm (1.5″) ferrule on lid (for pressure transfer attachments)
• 5 cm (2″) ferrule on bottom of cone
• Dual Valve Tap with 110 mm (4.3”) inlet
• Diameter with handles: 360 mm
• Height (without airlock): 910 mm
• Height with bubbler airlock: 1090 mm
• Dimensions of Carton: 368 mm W x 325 mm L x 905 mm H
