This kit is designed for owners of Chronical BME Fermenters and includes everything you need to introduce CO2 pressure into your fermenter without removing the lid cap and risking O2 contamination. The Chronical BME’s 3″ Lid cap includes a PRV that prevents pressure from building to unsafe levels.
Due to the popularity of both open and closed transfers with Chronical BME users, this kit does not include the output side to the keg, so please add a TC 1/2″ barb, 3/8″ barb or 1/4″ MFL fitting and the appropriate tubing for the type of transfer you plan on doing.
Begin by locating the 1/2″ tubing and attach one side to the 3″ TC lid cap’s blow off barb that was included with the Chronical BME. Then attach the other side of the 1/2″ tubing to the 1.5″ TC to 1/2″ Barb fitting, using hose clamps to secure both connections. Then attach the 1.5″ TC to 1/2″ Barb fitting to the included 1.5″ TC to 1/4″ MFL fitting with a TC clamp and gasket. Lastly, the 1/4″ MFL connection can interface with common gas line flare fittings used on CO2 regulators.
This kit only includes accessories to introduce pressure into your fermenter. It dos not include accessories for beer output.

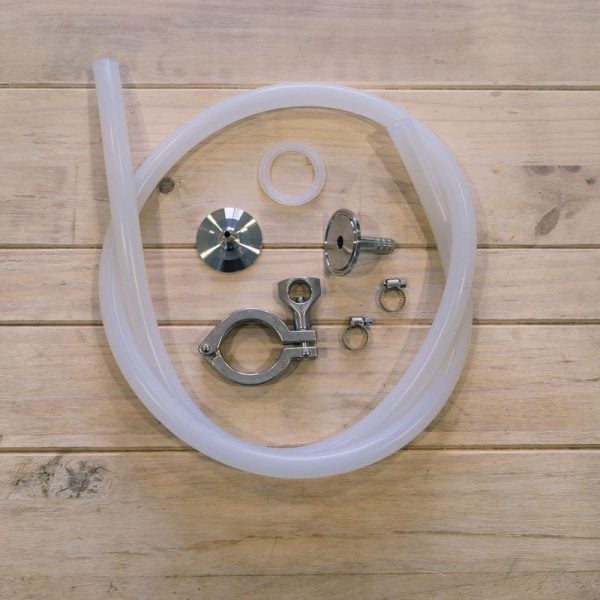

• (1) 1.5″ TC to 1/2″ Barb
• (1) 1.5″ TC to 1/4″ MFL
• (1) TC Clamp
• (1) TC Gasket
• (1) 2m Length of 1/2″ Silicone Tubing
• (2) Hose Clamps
