Tri Clamp Fittings – Secure and Sanitary Connections for Home Brewers

A tri clamp fitting, also known as a tri clover fitting or sanitary clamp fitting. It is a type of connection used in various industries, including food and beverage, pharmaceuticals, and biotechnology. Commonly used to create a secure and leak-proof connections between two pipes, tubes, or other components in a sanitary process system. They are an extremely good option for home brewers and are used exclusively on the higher end stainless steel equipment

Here are the key features and components of a tri clamp fitting:

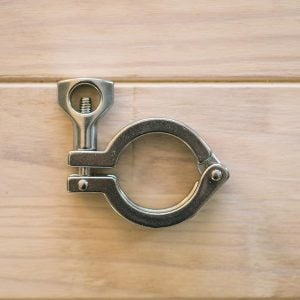

1. Clamp: The main component of a tri clamp fitting is the clamp itself. It is a circular metal clamp that holds the fitting components together tightly. The clamp typically has a wing nut or bolt for easy and quick tightening.

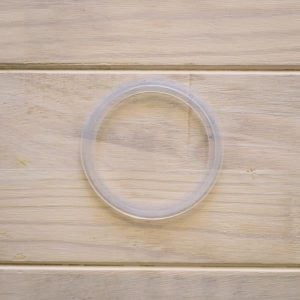

2. Gasket: A gasket is placed between the two flange ends of the tri clamp fitting to create a tight seal. Gaskets are usually made of food-grade materials such as silicone, EPDM (ethylene propylene diene monomer), or PTFE (polytetrafluoroethylene).
3. Flange Ends: The flange ends are the two parts of the fitting that come together and are secured by the clamp. They typically have a smooth, flat surface where the gasket is placed. The flange ends can be attached to pipes, tubes, valves, or other equipment components.

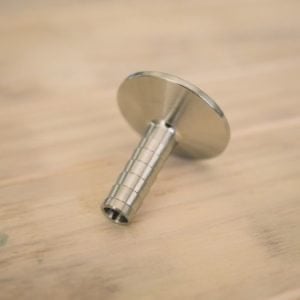

4. Ferrule: A ferrule is a short, cylindrical metal sleeve that is welded or soldered onto the end of a pipe or tube. The ferrule is then inserted into the flange end of the tri clamp fitting and held in place by the clamp. The ferrule provides a secure connection and helps to align and support the joined components.

Benefits of tri clamp fittings include:

1. Sanitary Design: Tri clamp fittings are designed for sanitary applications where cleanliness and hygiene are crucial, such as in food and beverage or pharmaceutical industries. The smooth, crevice-free surfaces and easy disassembly make them easy to clean and prevent contamination.
2. Quick and Secure Assembly: The tri clamp design allows for fast and straightforward assembly and disassembly without the need for specialized tools. The clamp can be tightened or loosened easily, ensuring a secure connection that is less prone to leaks.
3. Versatility: Tri clamp fittings come in various sizes, allowing for compatibility with different pipe or tube diameters. They can be used to connect pipes of the same size or to adapt between different sizes.
4. Leak Resistance: When properly installed and tightened, tri clamp fittings provide a reliable and leak-proof connection. The gasket creates a tight seal, preventing fluid or gas from escaping or entering the system at the connection point.

Tri clamp fittings have become popular in industries that require frequent disassembly, cleaning, and maintenance of process systems. Their ease of use, hygienic design, and leak-resistant properties make them a preferred choice in many sanitary applications.
