Description

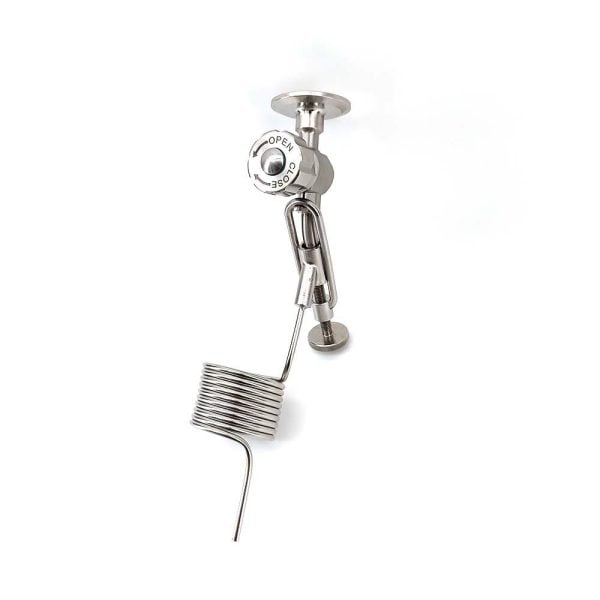

Complete kit, includes both sample valve and pigtail.
Sample Valve:-
Specifications:
5.5mm ID x 9.3mm OD
This 304 grade stainless steel sample valve is designed with reliability in mind and features:
1. Silicone and EPDM seals for reliability
2. Smooth bore for improved flow and more sanitary
3. Positive travel stop to prevent over closing and increased seat life
4. Stainless seat cap
Pigtail
The pigtail is made from 304 grade stainless steel with 10 turns so you have adequate flow resistance to take samples from your tank in a controlled way.
- The 1.7meter (4mm OD x 3mm ID) coil will ensure you can take samples out of vessels that are under pressure.
- Coil is welded to the compression body
