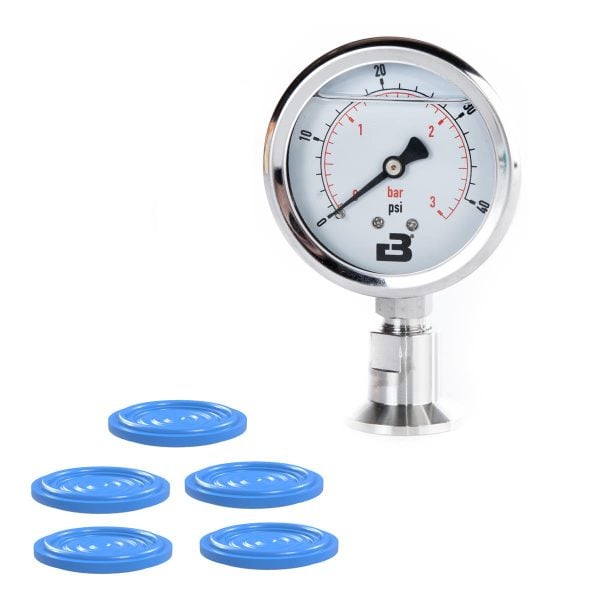

Brewtools – Analogue Gauge, Pressure, TC34mm, Kit

For use with Brewtools Unitanks this analogue pressure gauge from Brewtools is assembled and is ready to use, it has a range of  0-3 bar / 0-42 PSI and includes TC34mm holder, membrane gaskets (5 pcs) and PTFE bushing.

Important! The membrane gasket must be perforated, puncture a small hole in the centre using a needle or like to ensure correct reading on the gauge.

The membrane gasket will protect the gauge during e.g. CIP processes and foam caused by the fermentation process.

Spare gasket are supplied and the gasket should be checked regularly and replaced when needed.

The gauge housing can be filled with glycerine if desired, but is normally shipped without.

See Brewtools Docs for information and inspiration on how to set up your Brewtools equipment
