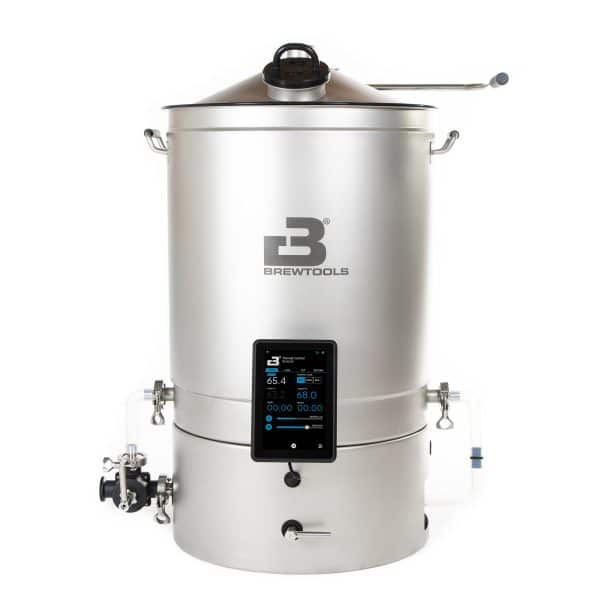

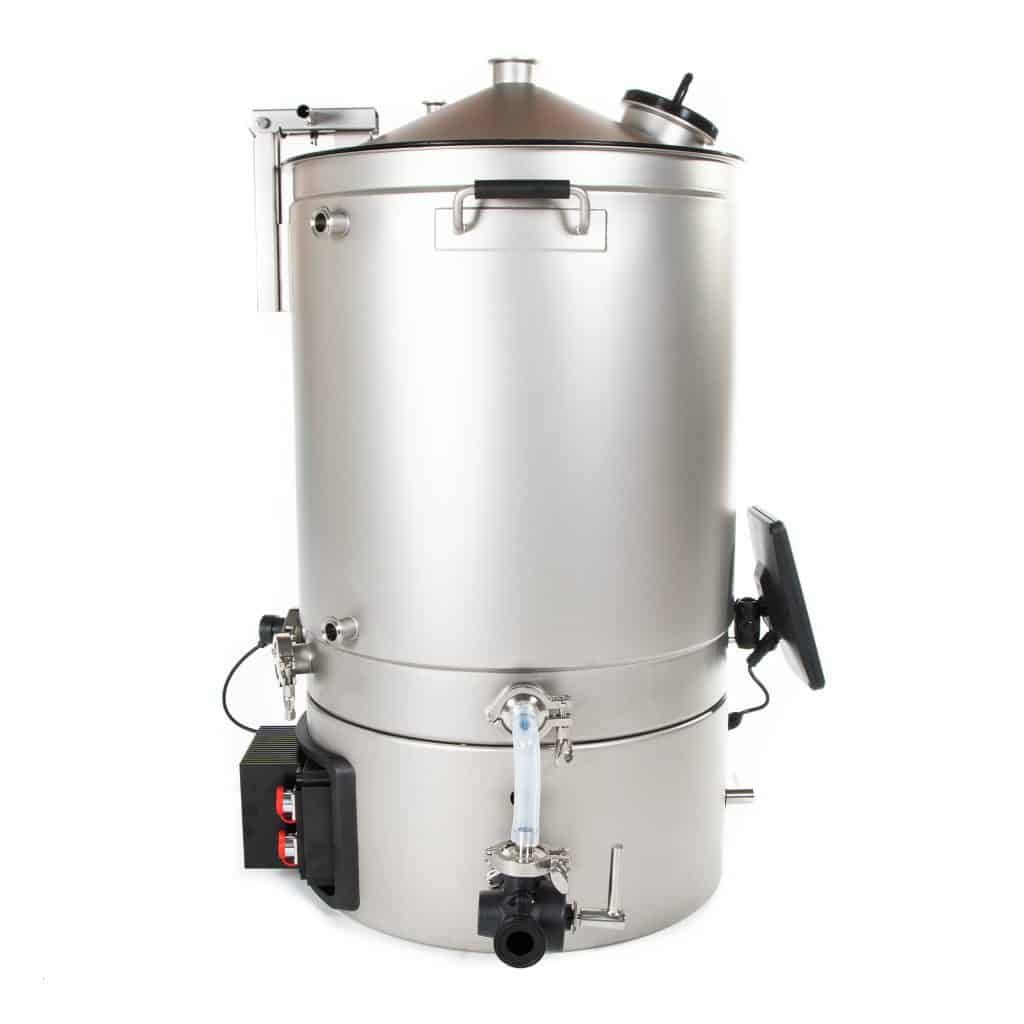

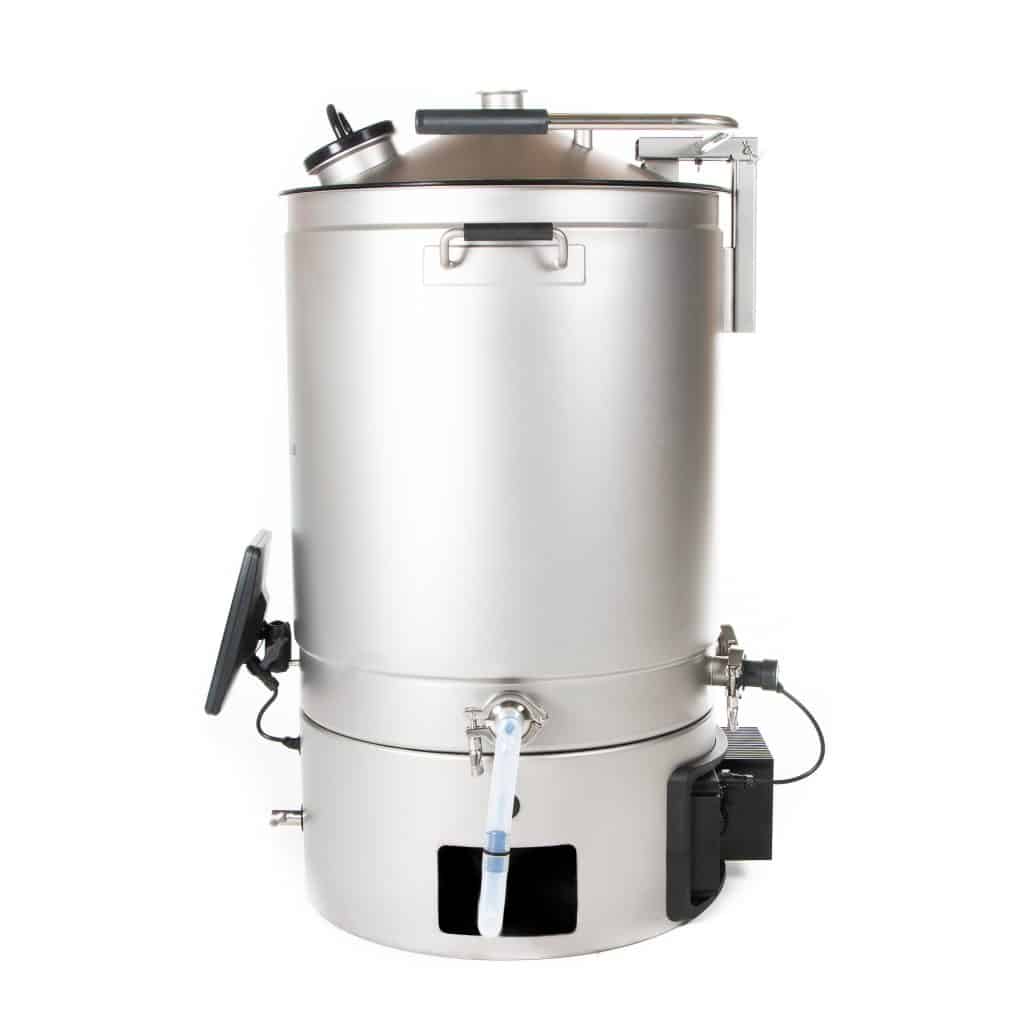

The Brewtools B100 is part of Brewtools’ new generation of premium all-in-one brewing systems, designed for brewers who want a highly capable, modern brewing platform with precise control and a clean, practical workflow.

Available for pre-order from 1st July, with the first systems expected to ship from late September, the B100 brings together Brewtools’ latest brewing technology in a powerful high-volume format. With indirect heating, an integrated cooling jacket, included whirlpool setup, FCS Brewing control and Brewtools’ patented CleanCore sanitary 3-way valves, this system is built for brewers who want consistency, flexibility and a more refined brew day.

A New Generation of Brewtools Brewing Systems

The new Brewtools brewing system range has been designed around a clean, integrated approach to brewing. Each system combines heating, pumping, control, cooling and sanitary valve design into one modern brewing platform.

The B100 is designed for serious home brewers, enthusiasts and small breweries who need more volume than the B25 or B50. With batch sizes from 20 to 100 litres and a total volume capacity of 117 litres, it offers a powerful brewing platform for larger batches, pilot brewing and small-scale production.

Indirect Heating and Integrated Cooling

The B100 uses indirect heating with a 10 degree conical bottom, helping deliver controlled heat while supporting efficient wort collection and draining. This is paired with an integrated cooling jacket, allowing the system to be cooled without placing a traditional immersion chiller inside the kettle.

This gives a cleaner, more practical brew day and helps keep the internal brewing space clear during chilling.

Powered by FCS Brewing

At the centre of the system is Brewtools’ FCS Brewing control platform, operated through a large 8 inch IPS touchscreen. The display can be positioned on the system or mounted externally, giving you flexibility when setting up your brewing space.

The B100 is also fitted with the Brewtools FCS Brew Pump, giving strong performance for recirculation, transfer and general brewing use.

Patented CleanCore Sanitary 3-Way Valves

The B100 features Brewtools’ patented CleanCore sanitary 3-way valves. These give the system a clean, practical and sanitary flow path, helping make recirculation, whirlpooling, transfer, draining and cleaning more straightforward.

Included Whirlpool Setup

The B100 includes a whirlpool setup as standard. This is designed to help improve wort movement, support fast cooling through the integrated cooling jacket and help maximise yield from the system.

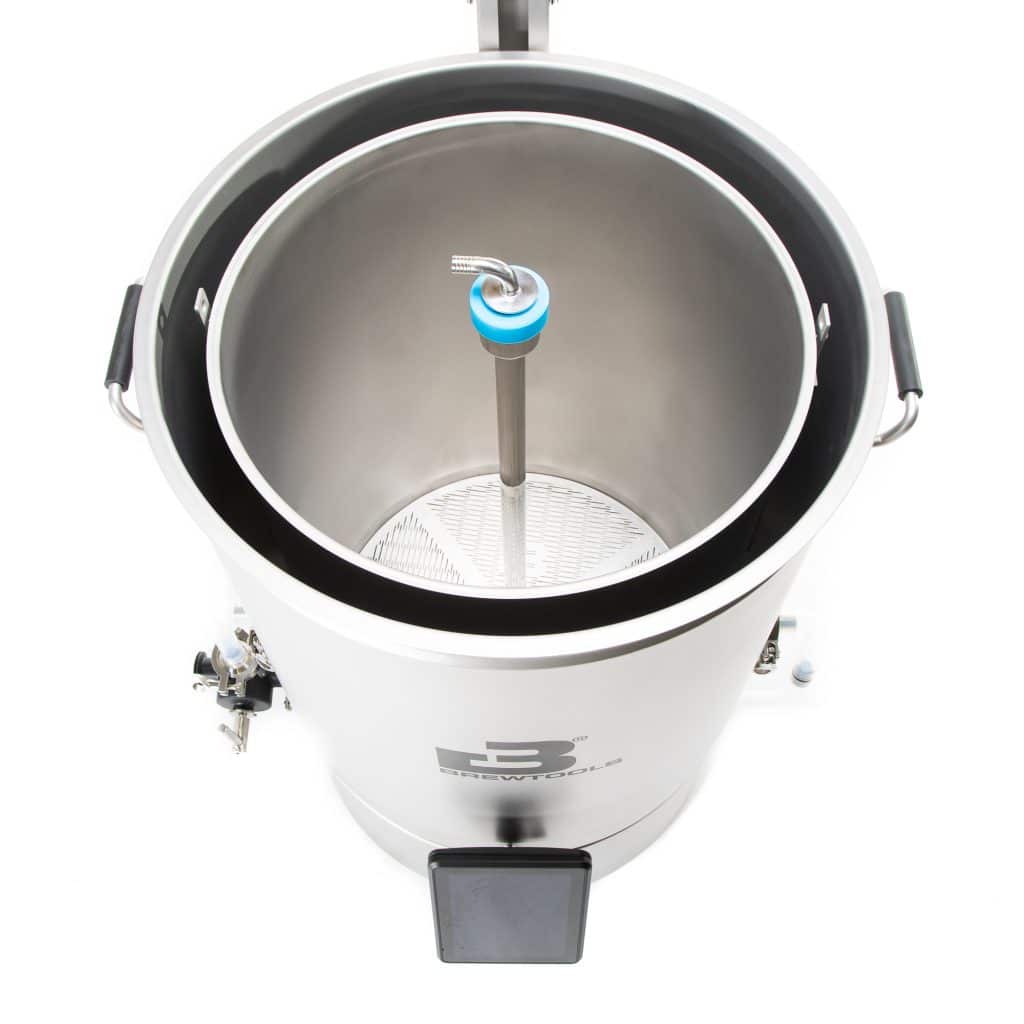

Tiltable Malt Pipe

The B100 includes a tiltable malt pipe, designed to make handling and emptying spent grain easier after the mash. This is especially useful on a system of this size, where larger grain bills can become heavy and awkward to manage.

Built for Expansion

The B100 includes 2 side TC ports, giving you additional options for expanding the system. These can be used for future upgrades such as sparge water input, external cooling options, bypasses and other brewing process improvements.

The B100 can also be expanded with an external side-by-side mash tun, greatly increasing malt capacity and removing the need for a crane to handle the malt pipe. This makes it a strong option for very high gravity brewing, larger batch production and more advanced brewing setups.

Key Features

Powerful Brewtools all-in-one brewing system

Part of Brewtools’ new generation brewing system range

Designed for 20 to 100 litre batch sizes

117 litre total volume capacity

Ideal for serious home brewers, enthusiasts and small breweries

Indirect heating with 10 degree conical bottom

Integrated cooling jacket

Included whirlpool setup

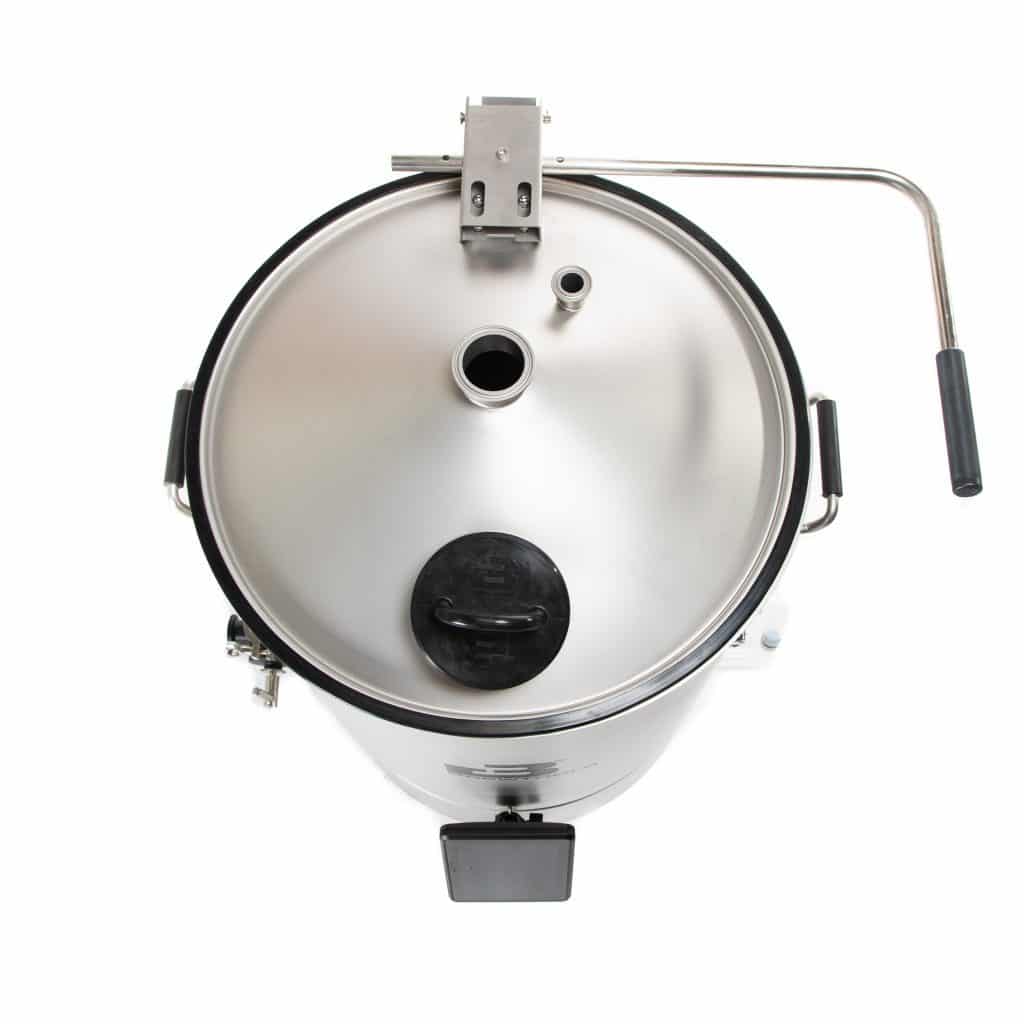

Included hinged steam hat

Tiltable malt pipe

Powered by FCS Brewing

8 inch IPS touchscreen controller

Patented CleanCore sanitary 3-way valves

Brewtools FCS Brew Pump

2 side TC ports for expansion

Optional external mash tun and counterflow chiller available separately

Included temperature sensor for malt pipe

304 stainless steel construction

TC 1.5 inch valves, fittings and connections

TC34mm connections for cooling jacket

Overheat protection, dry-boil protection and liquid detection

5 year warranty

What’s in the Box?

B100 brewing system with malt pipe and steam hat

Laser cut filter

1 CleanCore 3-way valve

Silicone tubing for draining and recirculation

Parts and accessories for assembly

Mash sensor, probe with 2m cable

2 x Brewtools Power Cables, 2m, UK 16A CEE to LP20

Specifications

Batch Size: 20-100 litres

Total Volume Capacity: 117 litres

Grain Capacity: 26kg

Power Configuration: 2x 230V 16A – 2 x UK 16A CEE to LP20 supplied

Heating Power: 6000W

Watt Density: 4W/cm²

Control System: FCS Brewing with 8 inch IPS touchscreen

Connectivity: Wi-Fi 2.4 GHz 802.11ax/b/g/n

Pump: Brewtools FCS Brew Pump, 30 l/min, 4.5m head

Materials: 304 stainless steel, food grade silicone, EPDM, POK

Valves, Fittings and Connections: TC 1.5 inch

Cooling Jacket Connections: TC34mm

System Height with Steam Hat: 950mm

Tank Dimensions: Ø500mm x 600mm high, 117.81 litres

Malt Pipe Dimensions: Ø415mm x 565mm high, 76.42 litres

Packing Dimensions: 660 x 660 x 1000mm

Packing Weight: TBC

Safety Features: Overheat protection, dry-boil protection, liquid detection

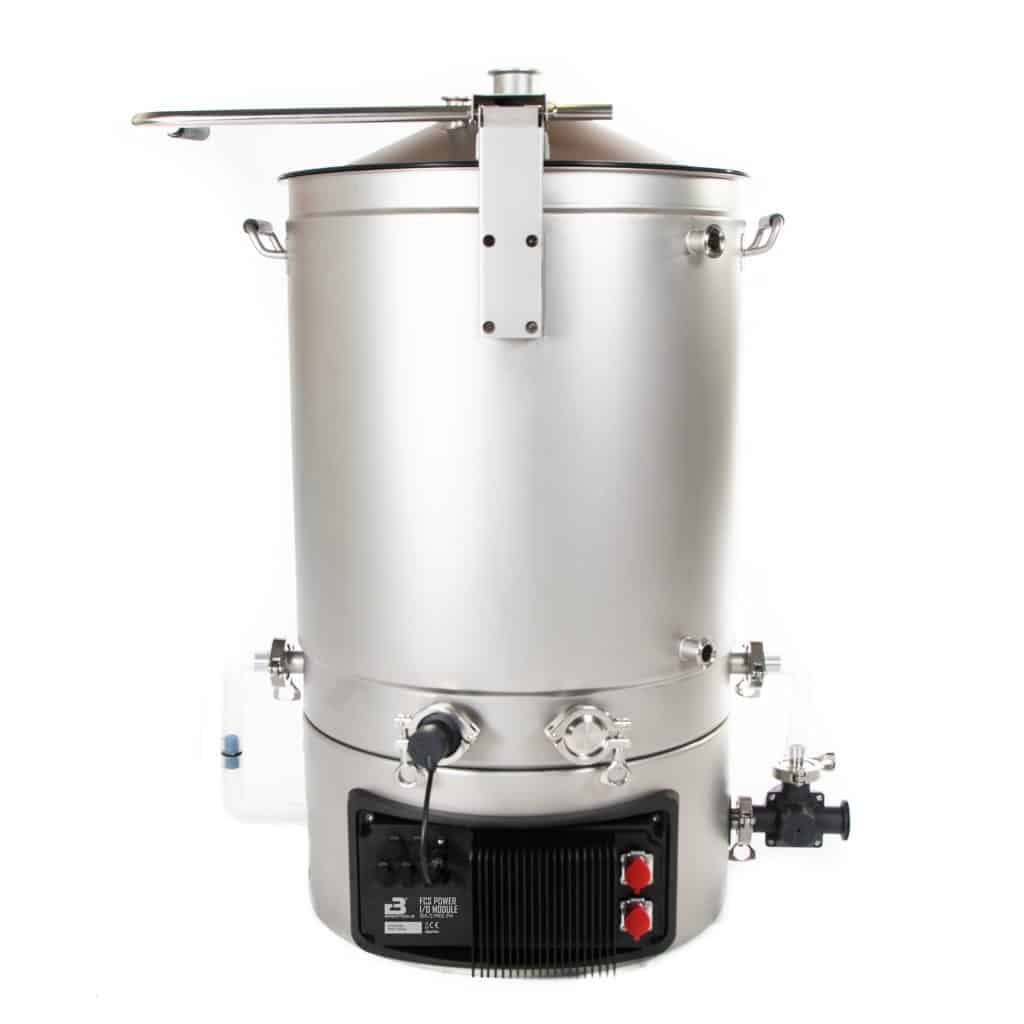

Available Controller Ports

2 CAN bus ports, +24V

1 High Power CAN bus port for external mash pump

1 external high level switch, for external mash tun

1 mash temperature sensor input

1 return temperature sensor input, optional

Pre-Order Information

The Brewtools B100 Brewing System is available for pre-order from 1st July. The first systems are expected to ship in late September.

If ordered with other items, your order may be held until the B100 is ready to ship. To receive other items sooner, please place a separate order.
