Description
The Brewtools B50 is part of Brewtools’ new generation of premium all-in-one brewing systems, designed for brewers who want a highly capable, modern brewing platform with precise control and a clean, practical workflow.
Available for pre-order from 1st July, with the first systems expected to ship from late September, the B50 brings together Brewtools’ latest brewing technology in a powerful homebrewing format. With indirect heating, an integrated cooling jacket, included whirlpool setup, FCS Brewing control and Brewtools’ patented CleanCore sanitary 3-way valves, this system is built for brewers who want consistency, flexibility and a more refined brew day.
A New Generation of Brewtools Brewing Systems
The new Brewtools brewing system range has been designed around a clean, integrated approach to brewing. Each system combines heating, pumping, control, cooling and sanitary valve design into one modern brewing platform.
The B50 is the workhorse of the range, making it ideal for home brewers who want more capacity than the B25 while still keeping the system practical and manageable. With batch sizes from 10 to 40 litres and a total volume capacity of 52 litres, it offers serious Brewtools performance in a powerful homebrewing size.
Indirect Heating and Integrated Cooling

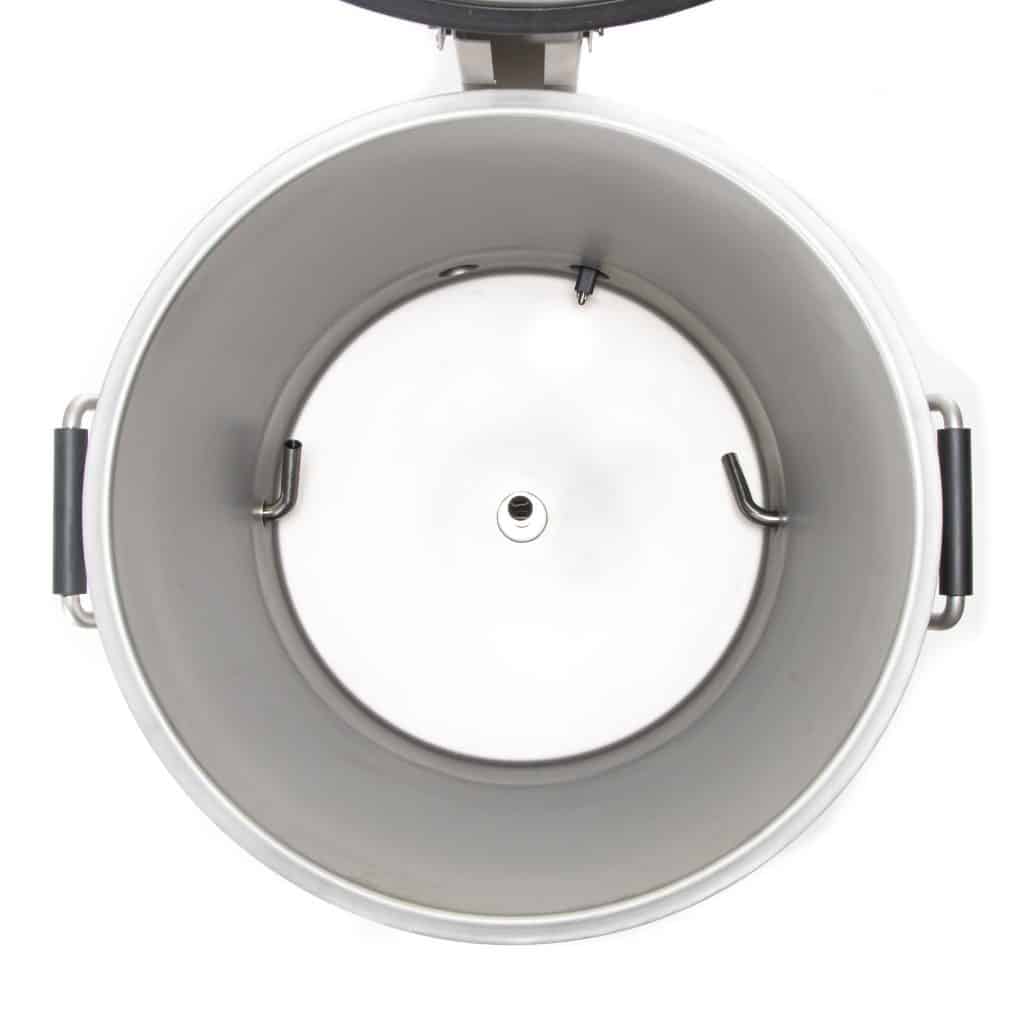

The B50 uses indirect heating with a 10 degree conical bottom, helping deliver controlled heat while supporting efficient wort collection and draining. This is paired with an integrated cooling jacket, allowing the system to be cooled without placing a traditional immersion chiller inside the kettle.
This gives a cleaner, more practical brew day and helps keep the internal brewing space clear during chilling.
Powered by FCS Brewing

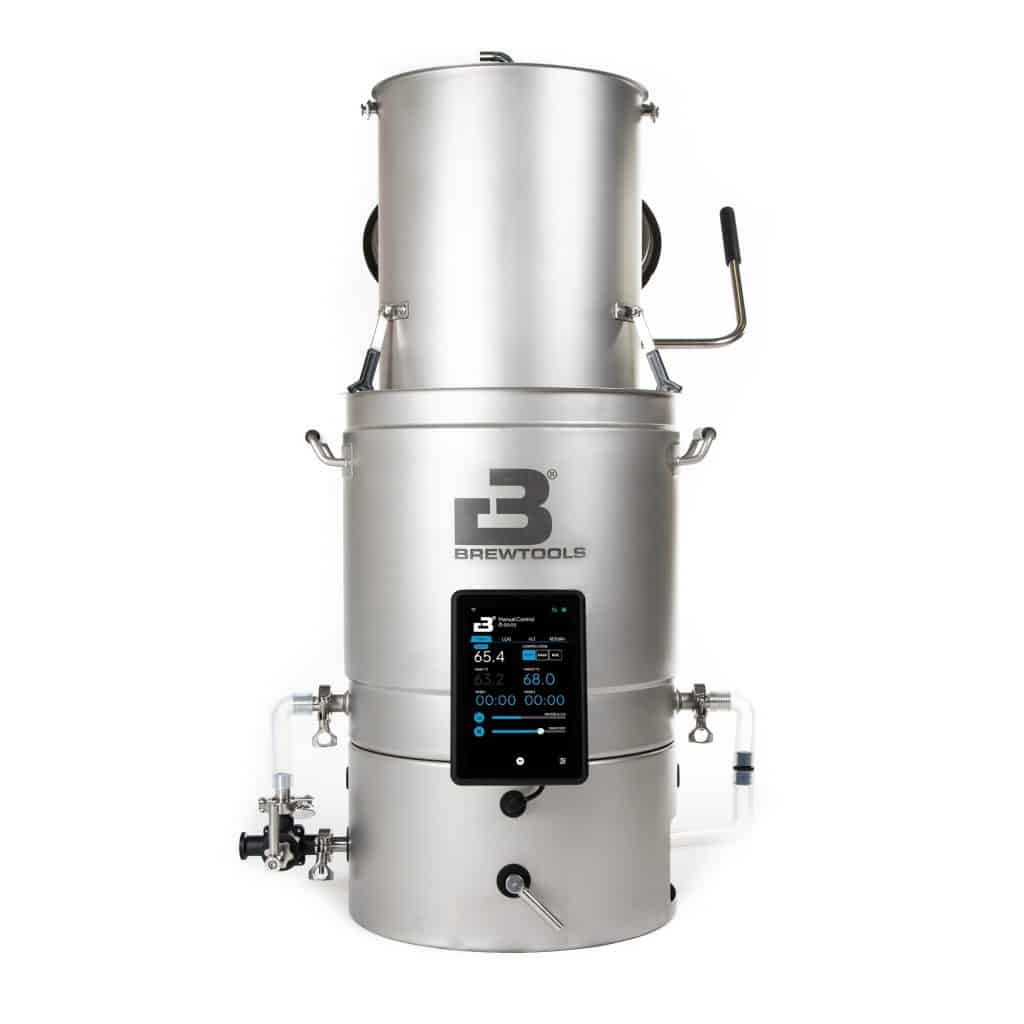

At the centre of the system is Brewtools’ FCS Brewing control platform, operated through a large 8 inch IPS touchscreen. The display can be positioned on the system or mounted externally, giving you flexibility when setting up your brewing space.
The B50 is also fitted with the Brewtools FCS Brew Pump, giving strong performance for recirculation, transfer and general brewing use.
Patented CleanCore Sanitary 3-Way Valves
The B50 features Brewtools’ patented CleanCore sanitary 3-way valves. These give the system a clean, practical and sanitary flow path, helping make recirculation, whirlpooling, transfer, draining and cleaning more straightforward.
Included Whirlpool Setup
The B50 includes a whirlpool setup as standard. This is designed to help improve wort movement, support fast cooling through the integrated cooling jacket and help maximise yield from the system.
Built for Expansion
The B50 includes 2 side TC ports, giving you additional options for expanding the system. These can be used for future upgrades such as sparge water input, external cooling options, bypasses and other brewing process improvements.
The B50 can also be expanded with a stackable external mash tun, allowing for very high gravity brewing and higher efficiency compared with using the integrated malt pipe alone.
Key Features
Premium Brewtools all-in-one brewing system
Part of Brewtools’ new generation brewing system range
Designed for 10 to 40 litre batch sizes
52 litre total volume capacity
Indirect heating with 10 degree conical bottom
Integrated cooling jacket
Included whirlpool setup

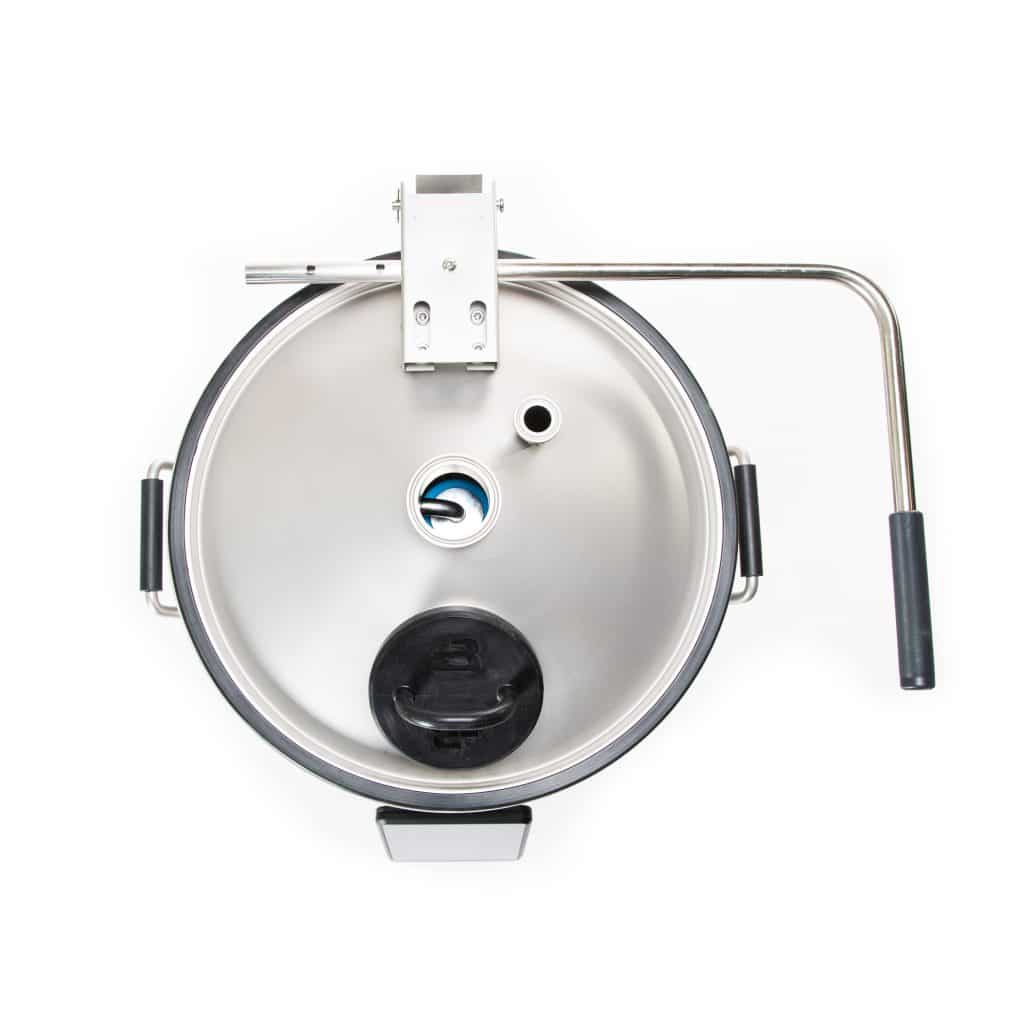

Included hinged steam hat
Powered by FCS Brewing
8 inch IPS touchscreen controller
Patented CleanCore sanitary 3-way valves
Brewtools FCS Brew Pump
2 side TC ports for expansion
Optional external mash tun and counterflow chiller available separately
Included temperature sensor for malt pipe
304 stainless steel construction
TC34mm valves, fittings and connections
Overheat protection, dry-boil protection and liquid detection
5 year warranty
Specifications
Batch Size: 10-40 litres
Total Volume Capacity: 52 litres
Grain Capacity: 10kg maximum, under 7.5kg recommended
Heating Power: 3300W, 230V -UK 16A CEE cable supplied
Watt Density: 3.73W/cm²
Control System: FCS Brewing with 8 inch IPS touchscreen
Connectivity: Wi-Fi 2.4 GHz 802.11ax/b/g/n
Pump: Brewtools FCS Brew Pump, 30 l/min, 4.5m head
Materials: 304 stainless steel, food grade silicone, EPDM, POK
Valves, Fittings and Connections: TC34mm
System Height with Steam Hat: 732mm
Tank Dimensions: Ø400mm x 420mm high, 52.78 litres
Malt Pipe Dimensions: Ø315mm x 385mm high, 30.00 litres
Packing Dimensions: 560 x 560 x 800mm
Packing Weight: TBC
Safety Features: Overheat protection, dry-boil protection, liquid detection

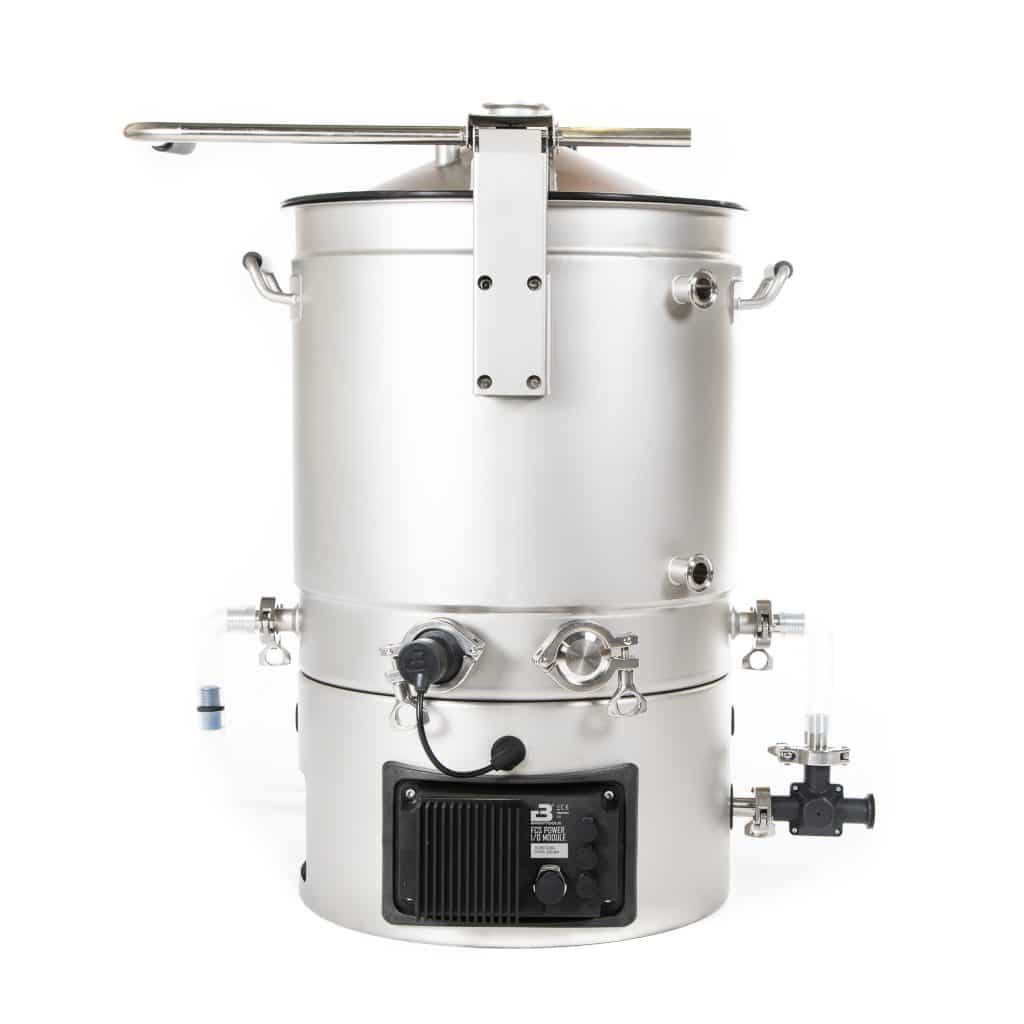

Available Controller Ports
1 CAN bus port, +24V
1 external high level switch, for stackable mash tun
1 mash temperature sensor input
What’s in the Box?
B50 brewing system with malt pipe and steam hat

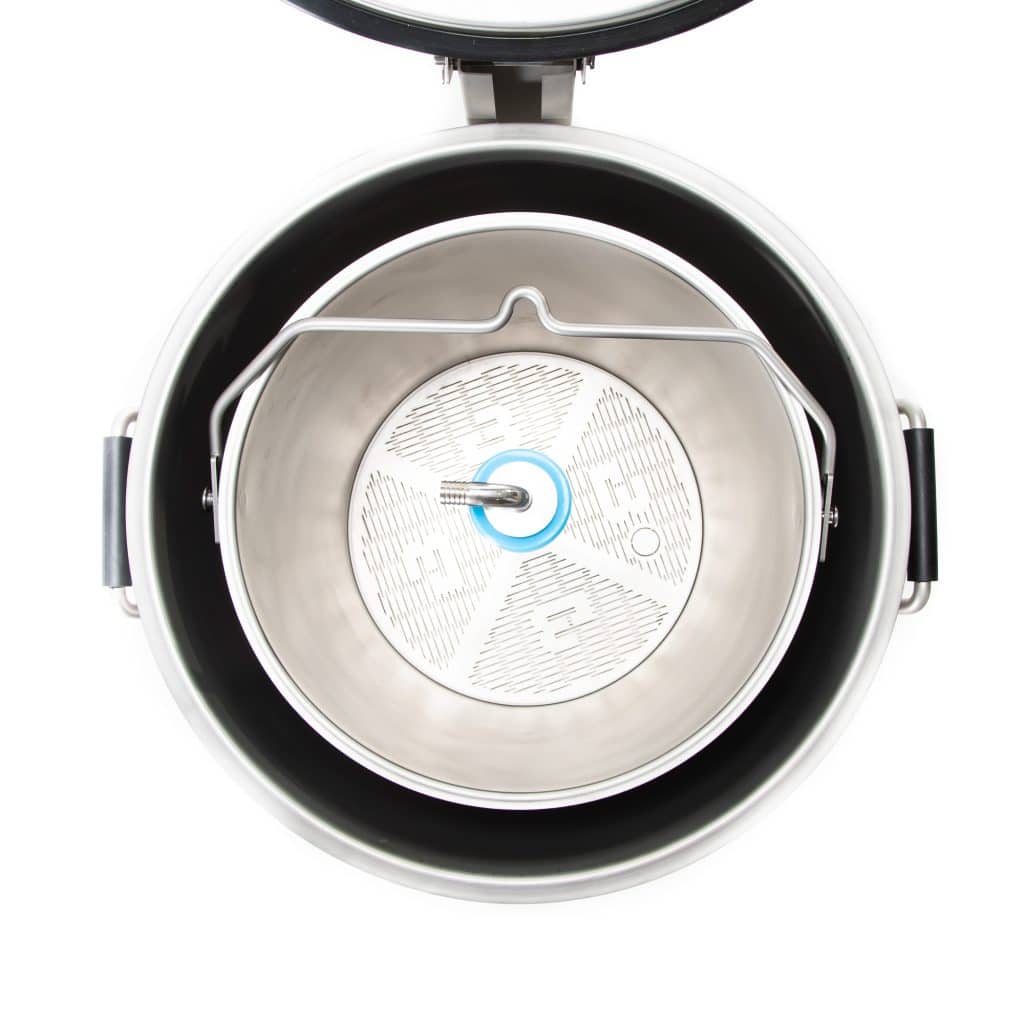

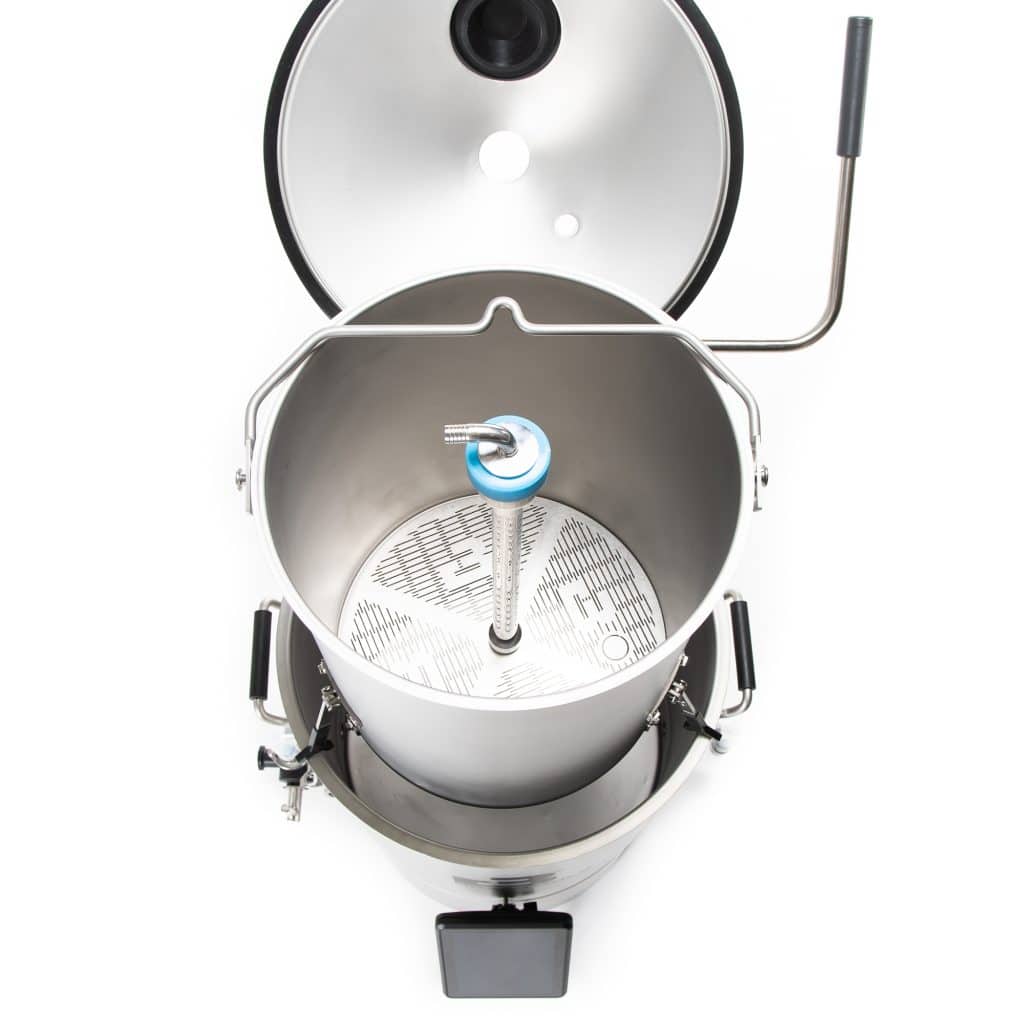

Laser cut filter
1 CleanCore 3-way valve
Silicone tubing for draining and recirculation
Parts and accessories for assembly
Mash sensor, probe with 2m cable
Brewtools Power Cable, 2m, UK 16A CEE to LP20 x 1
Pre-Order Information
The Brewtools B50 Brewing System is available for pre-order from 1st July. The first systems are expected to ship from late September.
If ordered with other items, your order may be held until the B50 is ready to ship. To receive other items sooner, please place a separate order.
