Everything you need to fully automate your fermenter, exactly as shown in our YouTube setup video. This complete Brewtools FCS kit includes all core components, cables, fittings, and accessories for precise control of flow, temperature, gravity, and gas during and after fermentation.
No extra parts required — just plug in, set up, and start brewing.

Full Description

The Brewtools Flow Control System (FCS) gives you the ability to monitor and control every aspect of your fermentation process. With this complete kit, you’ll have the exact setup demonstrated in our video guide, including:

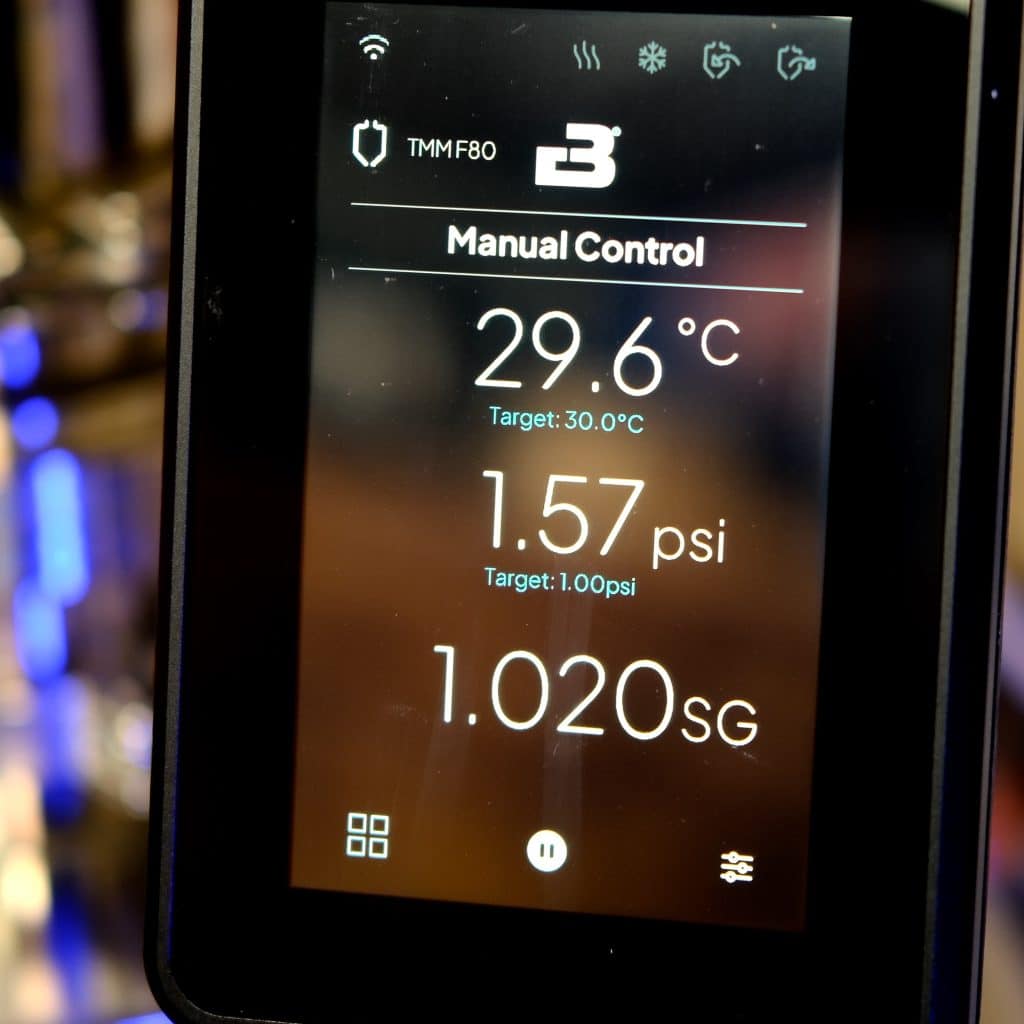

• Live display of fermentation data such as temperature, gravity, and pressure

• Automated valve control for gas management and liquid transfer

• High-precision sensors and CAN BUS integration for seamless performance

• All cables, power supplies, and fittings required to install and run the system

Whether you’re a serious homebrewer or running a small commercial brewery, this kit brings professional-level automation to your fermenter.

What’s Included in the Kit

The kit comes complete with every item needed — grouped below for clarity.

1. Core FCS Hardware

The main control modules and sensors that form the heart of the system:

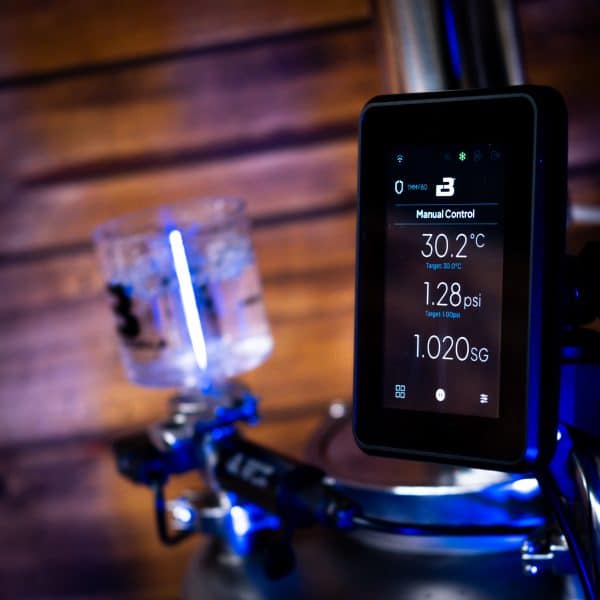

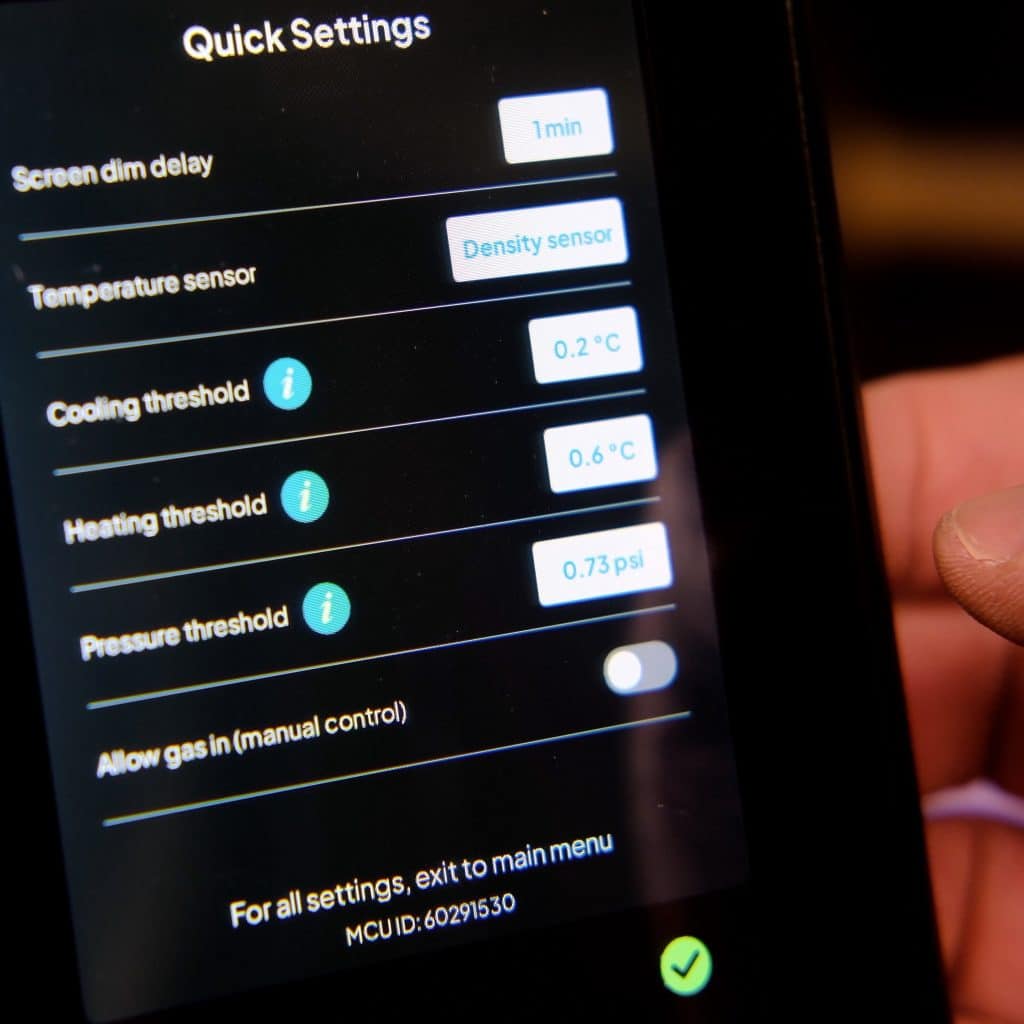

• FCS Display Module, 5” Touchscreen  – Control interface for the system

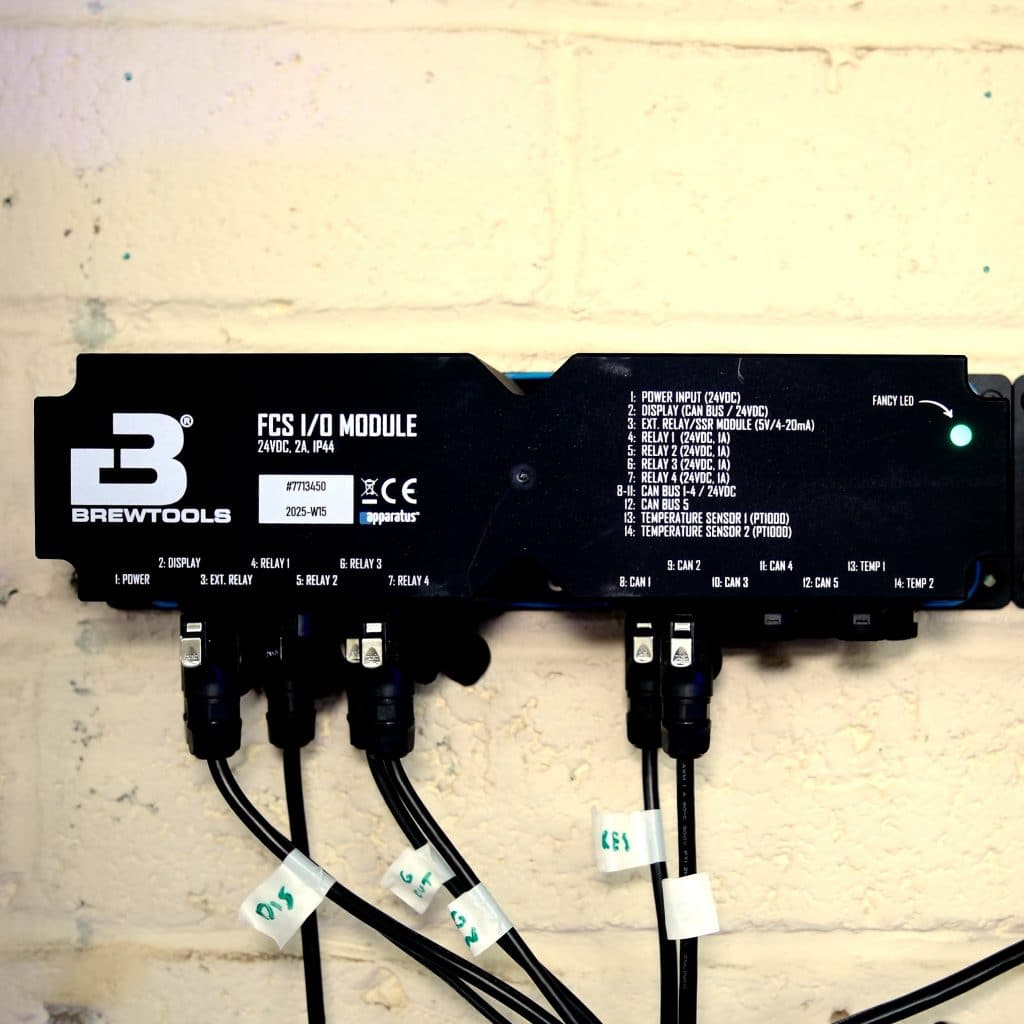

• FCS I/O Module – 2x RTD inputs, 5x CAN connections, 4x Relay outputs

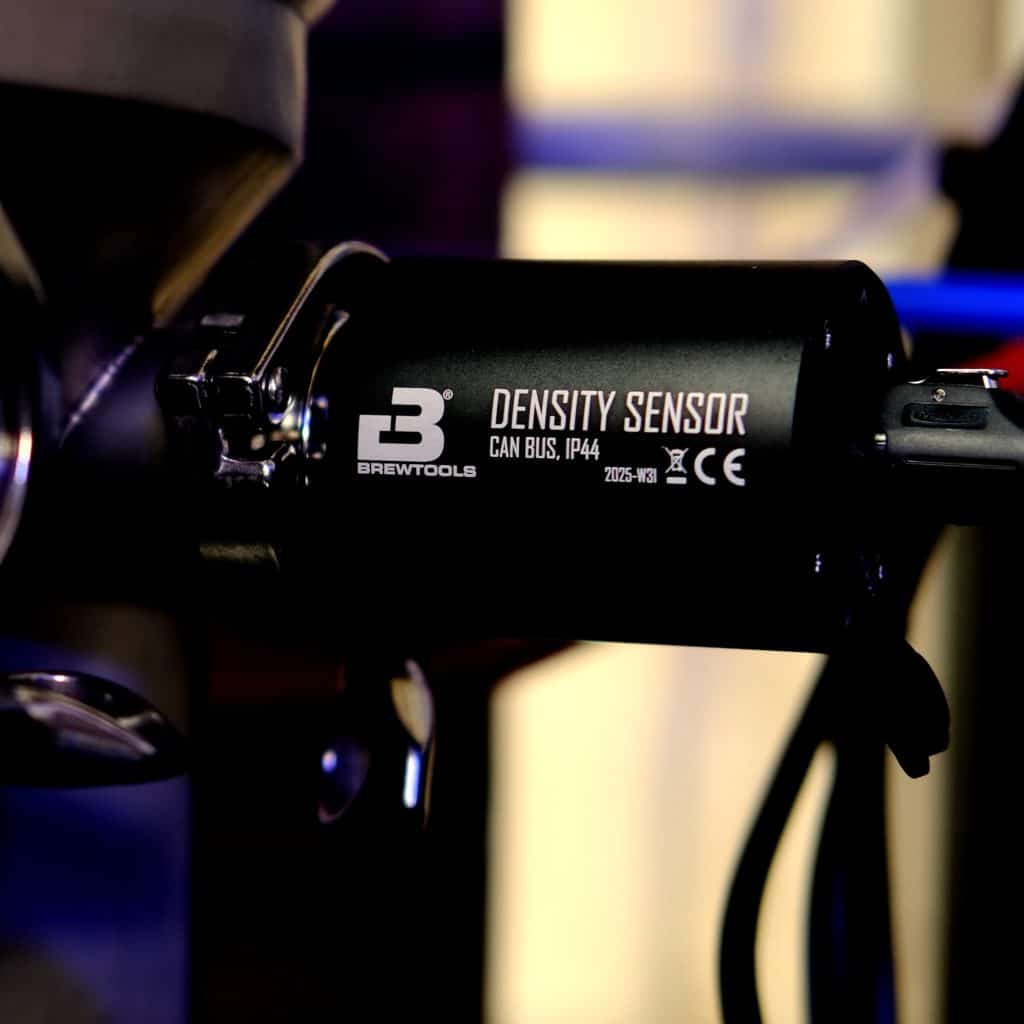

• Density/Temperature Sensor, TC 1.5″, CAN BUS 24V  300mm– For live monitoring of gravity and temperature

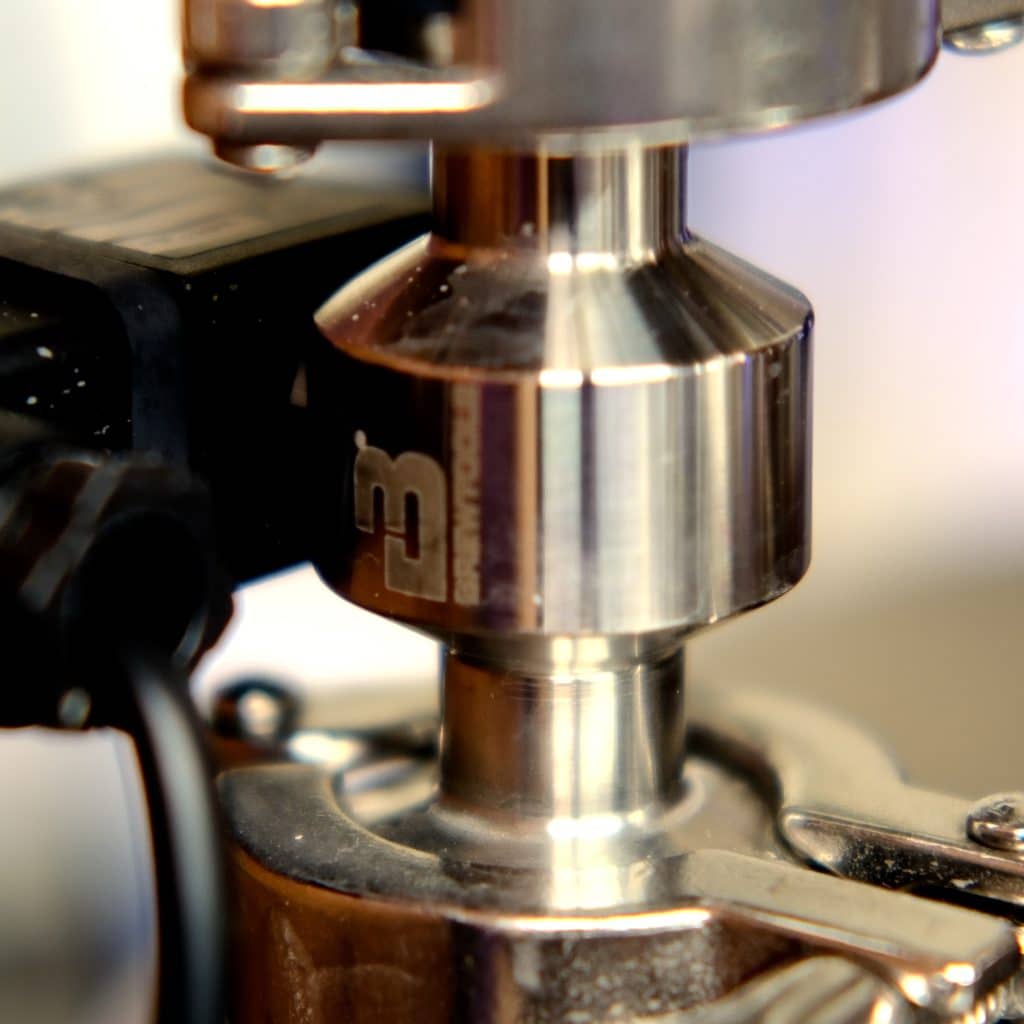

• Pressure Sensor, CAN BUS 24V, M12 – Reads fermentation vessel pressure

• Solenoid Valve, TC34mm + M12, DC24V Ø2.0  – Gas out/spunding control

• Solenoid Valve, TC34mm, NC, DC24V (EQU-40-046) – Gas in control

• Submersible Pump – (EQU-40-026) Pump glycol on demand
• TC34mm 200w Heating Element with power cable
• FCS Really module with jumper cable to IO Module and power cable. Please note that a UK 3 pin plug will need to be connected ( not supplied )

• ---

  2. Gas Control & Fittings

• For CO₂ integration and safe, controlled gas management:

  • Ball Lock Adapter, Gas, TC34mm (EQU-39-001) – Allows easy connection of gas lines

  • 34mm Clamp (EQU-18-001)

  • 34mm Tri Clamp Gasket – Pack of 5

  • Airlock, TC34mm, 2-part (EQU-39-032)

  ---

  3. Cables & Power

  All required cables and connectors, ready to install:

  • Cable, LP12 6-pin, 3m  – Connects FCS Display Module

  • Cable, LP12 5-pin, 3m (EQU-40-037) – For pressure and density sensors

  • Cable, LP12 2-pin, 3m (EQU-40-038) – For solenoid valves

  • Adapter, LP12 2-pin to DIN 43650 Type B (EQU-40-039) – For solenoid connections

  • Power Supply, 24V, 40W, LP12 2-pin (EQU-18-182) – Dedicated power for the system

  ---

  4. Mounting Hardware

  For securely installing the screen:

  • Ball Clamp 1″, Quick Clamp for Pipes (EQU-18-184)

  • Ball Clamp 1″, Connecting Rod 60mm (EQU-18-184)

  • 34mm TC -10mm hose barbs  x 2 for glycol lines

  ---

  Key Features

  • Complete solution – no extra parts to buy

  • Designed specifically for Brewtools fermenters and equipment

  • Precision control of liquid flow, pressure, temperature, and gravity

  • CAN BUS integration for reliable communication between components

  • Easy installation with our step-by-step YouTube video guide

  • Suitable for both advanced homebrewers and small commercial breweries
