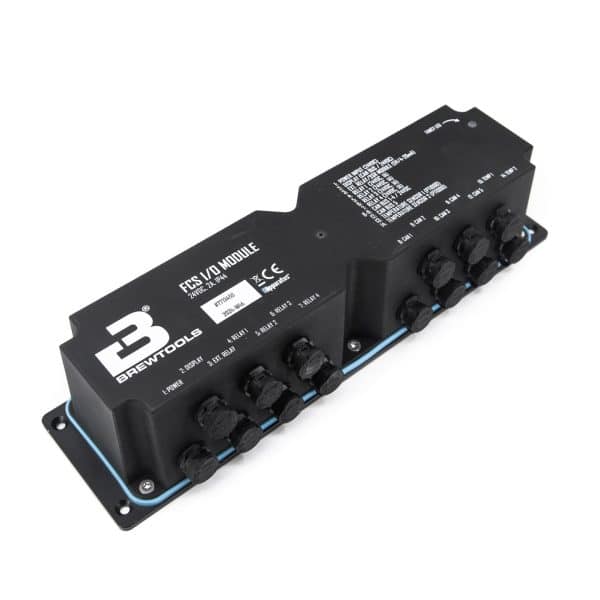

The I/O Module is the heart of the FCS system. It connects all sensors and actuators and control all data in and out. It also powers all devices.

Featuring 14 connectors, a fancy LED and advanced electronics the I/O module offers superior flexibility and functionality.

The control is done from the FCS Display Module.

Inputs/outputs:

– Power, 24V DC 2A max – LP12 2-pin
– Display Module connection; CAN bus + 24V – LP12 6-pin
– External relay module, control signal 0-5V / 4-20mA + Current measurement – LP12 7-pin
– 4x Relay outputs with current measurement, 1 reversible voltage – LP12 2-pin
– 4x CAN + 24V outputs with current measurement – LP12 5-pin
– 1x CAN extension – LP12 5-pin
– 2x PT1000 temperature sensor inputs – LP12 3-pin

Installation:

4 screw holes with 5mm diameter. Designed for countersunk screws.
