Description

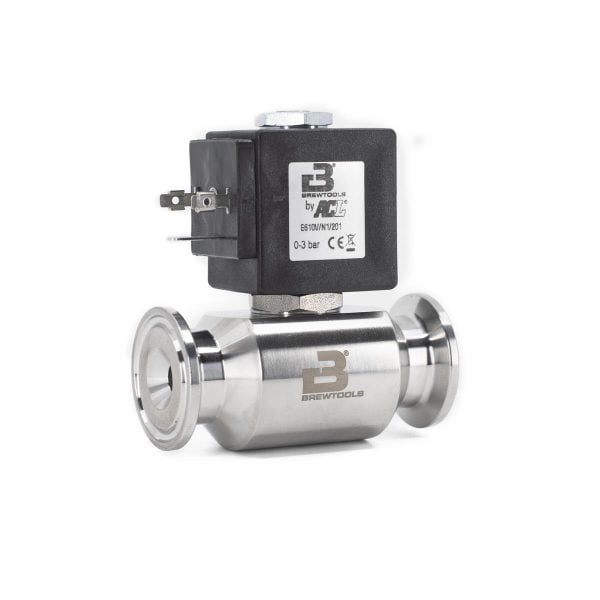

Brewtools – Solenoid valve, TC34mm, NC, DC24V

0-3 bar, 4.5mm Orifice

Solenoid valve made from stainless steel. Designed for glycol, water and air/co2.

TC3mm ports in both ends for maximum flexibility.

Coil and plunger Italian-made by ACL.

The valve can easily be disassembled and cleaned.

Coil has DIN 43650 Type A connector (not included).

Normally used with TC34mm to 3/8″ NPT threaded adapter and leak-free quick connectors on one or both sides depending on setup.

Specifications:
Ports: TC34mm / TC34mm
Operation: NC (normally closed)
Power supply: DC24V, 10W
Orifice: Ø4.5mm
Pressure rating: Max 3 bar / 43 PSI
