Brewtools Unitanks are fermenters made for ambitious homebrewers and small breweries. As part of the Brewtools identity, they have explored new techniques and solutions. This has resulted in a series of high end fermentation tanks with new features and a lot of possibilities.

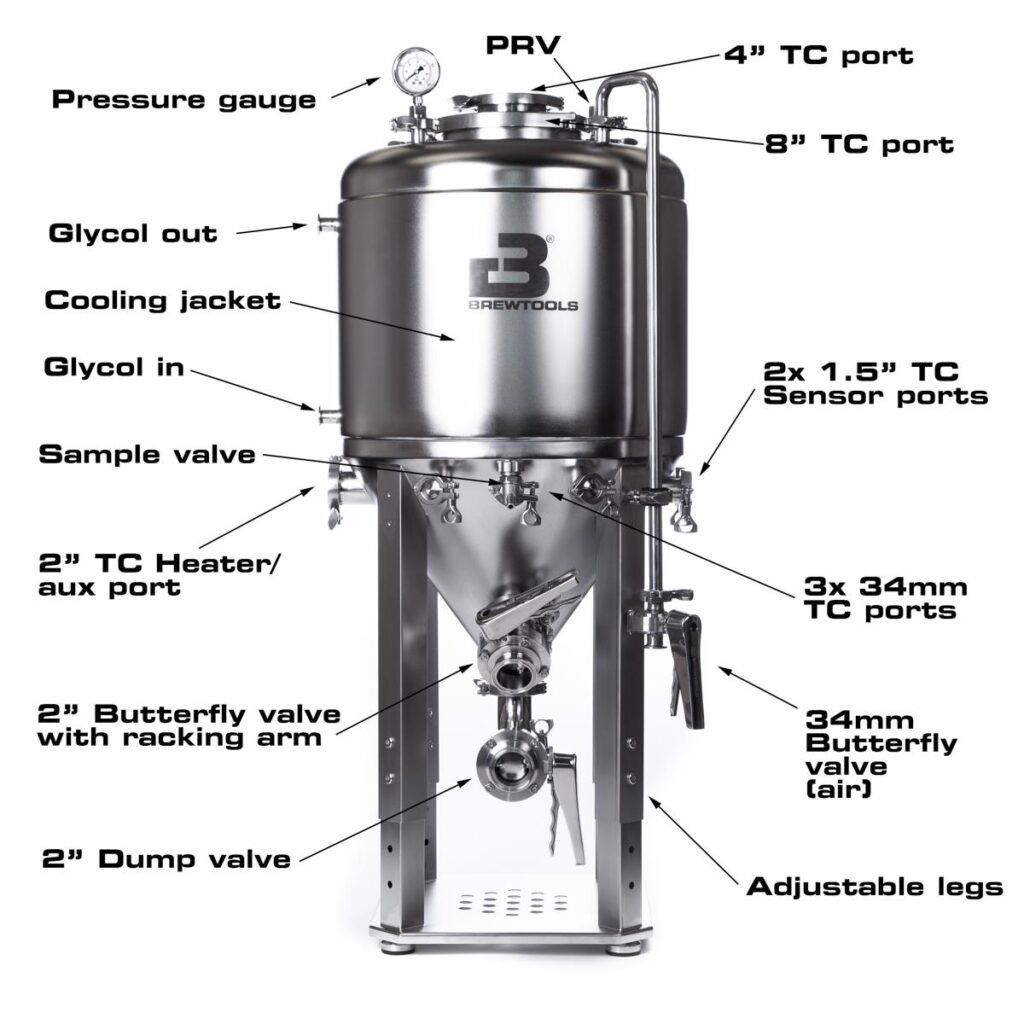

Key Features:-

– Brewtools PureBlast™ surface inside and out which eliminate the use of wax and polishing compounds and does not require passivation.
– Cooling jacket in the vertical walls offers efficient cooling without the hazzle of cleaning a spiral.
– Many options for connecting accessories like sensors, heaters, carb. stones and other accessories.
– Pressure rated for 2 bar / 30 PSI.
– 8″ TC port on top for easy access.
– 2″ TC dump and racking valves.

Unitanks are designed and manufactured with special attention to safety and quality.
They are tested and certified according to the requirements for PED 2014/68/EU by a third party.

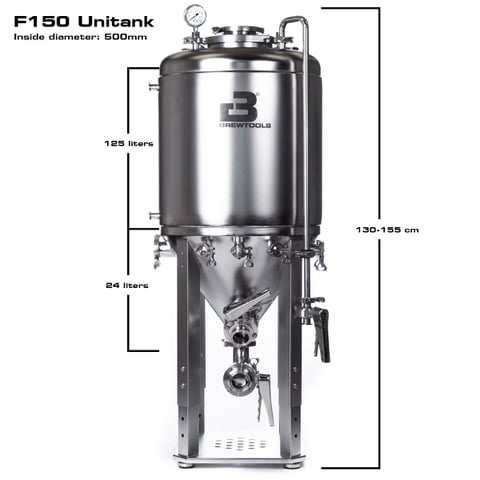

Specifications

– Low height w/o acc.: 127 cm

– Max height w/o acc.: 147 cm

– Packaging size: 130 (h) x 60 (w) x 60 (d) cm

– Net weight: 56.0 kg

– Gross weight: 61.9 kg

– Tank diameter (inside): Ø50 cm

– Gross volume: 150 liter

– Max rec. volume: 140 liter

– Min rec. volume: 45 liter

– Volume, cone: 24 liter

– Material: 1.5mm stainless steel (SS304)

– Operating pressure: 1.0 bar / 15 PSI

– Max pressure: 2.0 bar / 30 PSI

In the box:

– Unitank with adjustable frame
– 1 pcs Analog pressure gauge, TC34mm
– 2 pcs Butterfly-valve, 2″
– 1 pcs Butterfly-valve, 34mm DN20
– 1 pcs Blow-off pipe
– 1 pcs Racking arm 2″
– 1 pcs TC elbow 90°, 2″
– 1 pcs Insulation jacket, black neoprene
– 1 pcs Sample valve, 34mm
– 1 pcs TC Adapter 8″-4″
– 1 pcs TC blind cap, 4″
– 1 pcs TC blind cap 2″
– 2 pcs TC blind cap 1.5″
– 3 pcs TC blind cap 34mm
– 2 pcs TC gasket 8″ lipped
– 2 pcs TC gasket 4″
– 2 pcs TC gasket 2″ 5-pack
– 1 pcs TC gasket 1.5″ 5-pack
– 3 pcs TC gasket 34mm 5-pack
– 1 pcs Tri Clamp 8″
– 1 pcs Tri Clamp 4″
– 5 pcs Tri Clamp 2″
– 2 pcs Tri Clamp 1.5″
– 10 pcs Tri Clamp 34mm
– 1 pcs TC tool
– 4 pcs M10 steel/rubber feet
– 1 pcs TC34mm safety valve (PRV, 2 bar)
– Necessary bolts and parts for assembly
