Duofiller Mono (G3) Automatic Can and Bottle Filler

Duofiller Mono (G3) Automatic Can and Bottle Filler

(1 customer review)

£249.00

See more product details...

The next level in beer packaging

Only 3 left in stock

Quantity:
TEST >>1 - 3
Add to Wishlist
Add to Wishlist
SKU: EQU-28-012 Category:

Description

The Duofiller Mono (G3) is a can and bottle filler that quickly and accurately fills cans or bottles to the preset fill level with minimal spillage or waste.

Key Features:

  • Fill rate: approximately 1 liter per minute (at 1 bar keg pressure)
  • Consistent fill level every time
  • Stainless steel inlet connectors
  • Minimal waste
  • Fills both cans and bottles
  • Easy to clean
  • WiFi connection for settings

Included



Beverage line 2.5m 3/16″ OD John Guest type filling line for normally carbonated beverages

3/16″ OD filling line with a slightly smaller inner diameter for highly carbonated beverages

110V-240V AC to 12V DC power supply with selectable (EU, UK, US, AU) plug type

DUOFILLER MONO (G3)

Usage

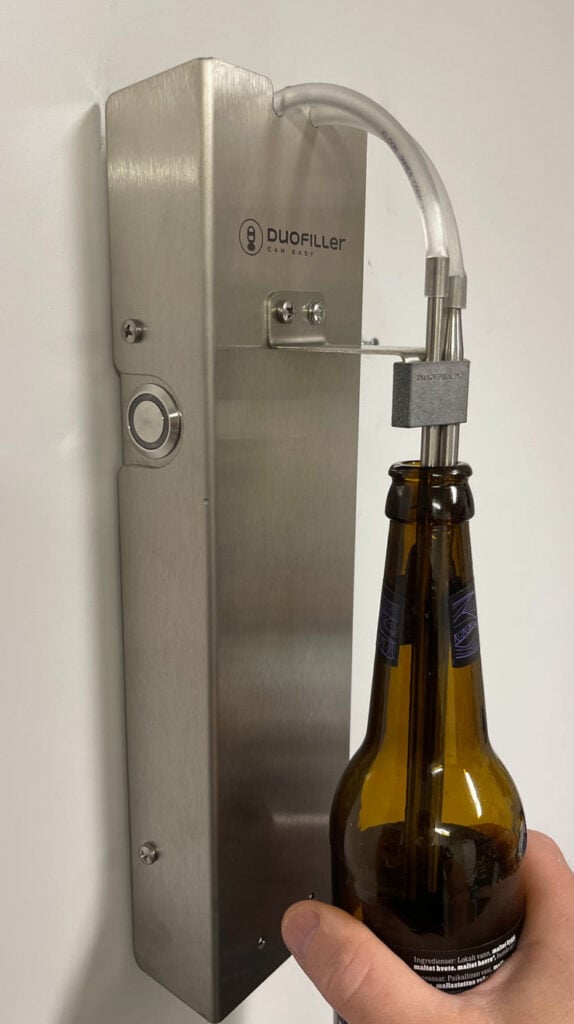

Duofiller Mono (G3) pre-purges the can/bottle with CO2 before it fills to the desired fill level. The fill level is easily programmed by entering programming mode, start a fill, and then manually stop at the desired fill level with a single button press. Subsequent fills will automatically stop at the set fill level.

Cleaning

Cleaning is as easy as filling! Simply connect to a keg with water, line cleaner, sanitizer, etc., and run a filling cycle to clean the machine. Duofiller Mono (G3) uses a pinch valve that flattens a soft tube to shut off the flow, ensuring no cavities or narrow passages where particles can get stuck or are difficult to clean.

If used for mixed fermentation and disinfection is required, all parts in contact with the beverage can be easily disassembled and boiled in water in a kettle.

Design

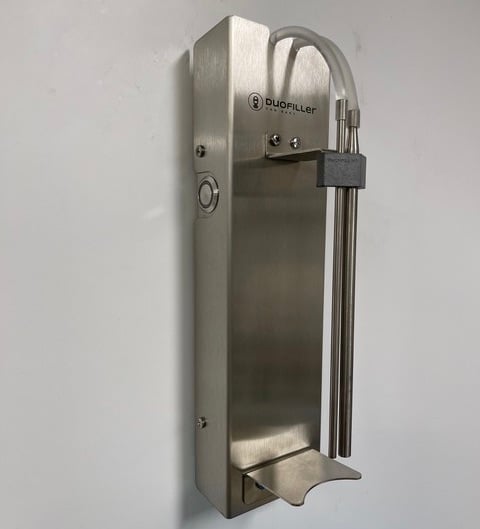

Duofiller Mono (G3) is designed to be wall-mounted to save tabletop space. It comes with screws for direct wall mounting. For example, it can be hung over a sink or a tray for easy spill management.

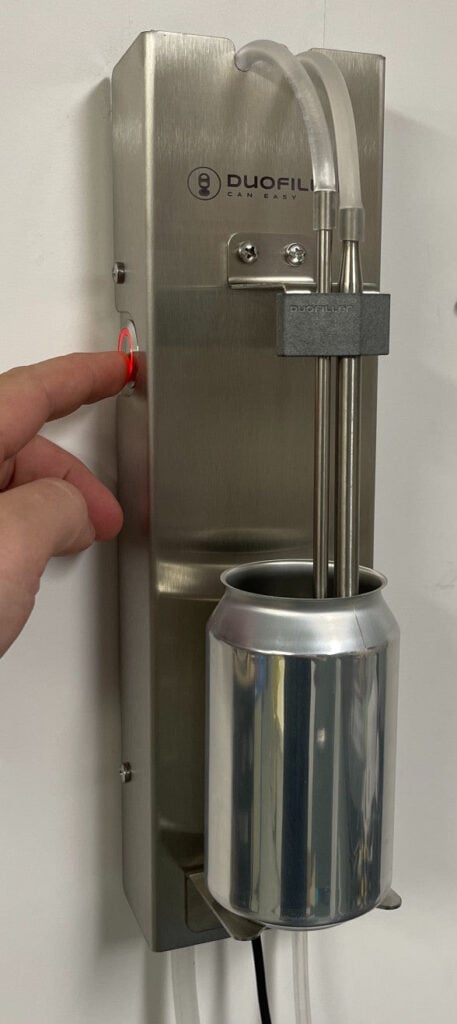

It has a dedicated button to start the fill. There are no small screens or tiny buttons to struggle with; programming the fill level is simple using the same button. For additional/advanced settings, it has a web interface accessible from a standard web browser. The web interface is hosted locally on the machine. Local hosting ensures independence from internet or cloud services and eliminates risks of vulnerabilities, downtimes, or service discontinuations common to cloud-based solutions.

Included

  • Beverage line 2.5m 3/16″ OD John Guest type filling line for normally carbonated beverages
  • 3/16″ OD filling line with a slightly smaller inner diameter for highly carbonated beverages
  • 110V-240V AC to 12V DC power supply with selectable (EU, UK, US, AU) plug type

Requirements

  • If connecting to Cornelius kegs, you’ll need 1 piece black ball lock fitting with threads.
  • For connecting to unitanks, we recommend a tri-clamp adapter (1 piece).
  • CO2 hose and regulator. The CO2 pressure for the machine should be max 0.2 bar (3psi), meaning it’s best to have a regulator with a dedicated outlet. If CO2 is taken from the same outlet as the keg, a secondary regulator (inline regulator) can be used to provide 0.2 bar (3psi).
  • Pressurized container/keg/unitank. The keg pressure must be min 0.5 bar/max 1.4 bar (7-20psi).

Additional information

Weight 5 kg
Country of Origin NO
HS Code 8422300000

1 review for Duofiller Mono (G3) Automatic Can and Bottle Filler

  1. Neil Jones (verified owner)

    I purchased this along with a canning machine. I used to bottle previously and have a bottle gun and also the Boel counter pressure bottle filler, both very good, but nowhere near as good as this filler. I mounted it to a stand that I had, and also fixed a secondary co2 regulator to the stand, sorted out a bit of pipework and was filling cans soon after. It has 2 filling modes, sensor or timer, I’ve only used the sensor mode as that suited because I was canning from different kegs with different pressures. It purgers the can, a reasonable quick fill, and switches off automatically at the programmed fill level. No mess, and hands free, brilliant. Top quality product that’s going to make can filling easy. 5 stars from me.
