The FTSs | Glycol Jacketed Tank kit has been designed to leverage components from the home brewing FTSs line in an effort to provide a low cost solution to pair a 1, 2, or 3.5 BBL Jacketed Unitank and Jacketed Brite Tanks with either 3/8 HP or 3/4 HP glycol chillers.

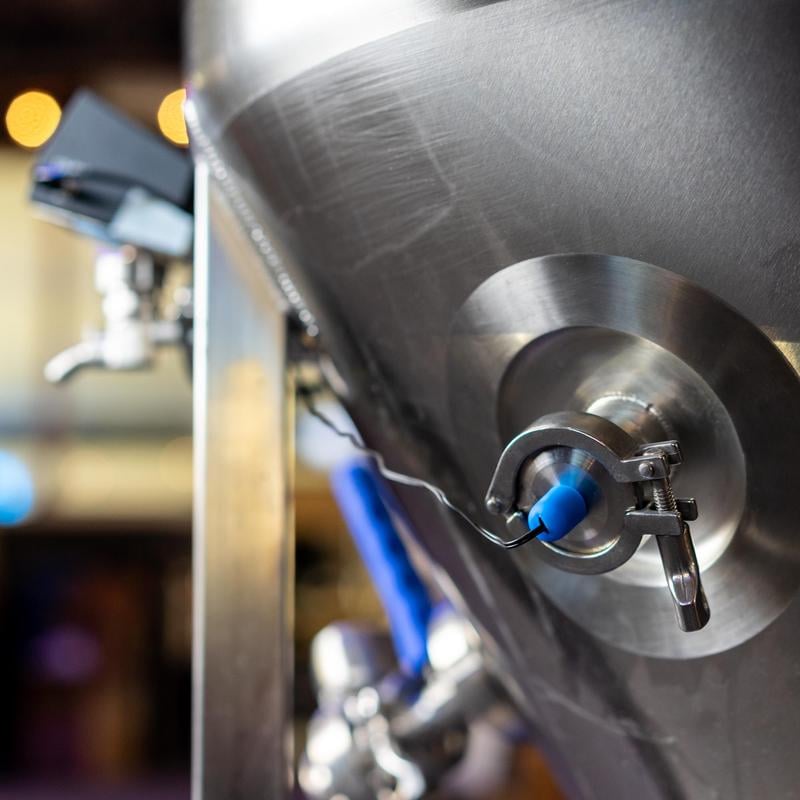

This system features a custom TC thermowell adapter, along with silicone insert to adapt the temperature probe from an FTSs controller to the welded in sleeved thermowell port on the line of Jacketed Tanks. In addition, a custom designed low pressure open silicone check valve is included to prevent backflow to the chiller’s reservoir when glycol is not flowing. The kit includes upgraded 3/8″ ID silicone glycol tubing, and 1/2″ NPT to 3/8″ barbs to adapt the glycol ports for use with the standard FTSs pump.
Since most Jacketed Tanks are setup for use with a pressurised loop glycol system typically found in commercial breweries, this kit offers a Nano brewery an affordable, easy to setup alternative to more elaborate or expensive installations. Everything is included to interface a single Jacketed Tank with an Ss Glycol Chiller.
Digital temp control
FTSs submersible pump
Custom check valve
1.5″ TC controller mount
Works with 1, 2 and 3.5 bbl jacketed Unitank
What’s in the box:-
(1) FTSs pump
(1) FTSs control box – single output
(1) 3/8″ ID silicone tubing – 15 ft
(4) FTSs hose clamp for 3/8″ barbs
(1) FTSs power supply 3A with region correct power lead.
(1) Hose barb – 3/8″ to 1/2″ MPT
(1) FTSs controller mounting bracket
(1) Silicone thermowell cover
(1) 1.5″ TC sleeved thermowell adapter
(1) Sanke check valve
(1) FTSs harness extension 3 ft
(1) Silicone check valve
