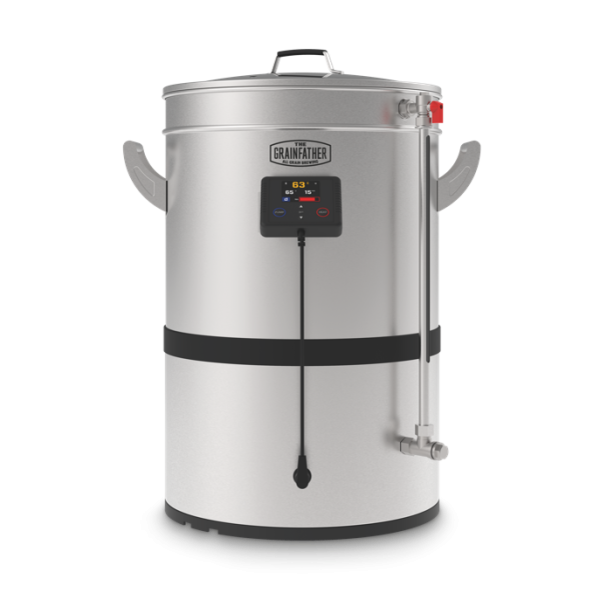

Grainfather G40 Brewing System

Feature packed brewing system to produce up to 38 litres with full wireless control

SKU: EQU-06-069 Categories: , ,


Out of stock

Add to Wishlist
Add to Wishlist
You must register to use the waitlist feature. Please login or create an account


Introducing the new G40 from Grainfather, packed with all of the innovative features you can find in the G70 plus more

The Grainfather G40 is the latest brewing system in the G SERIES range. Packed with all of the innovative features you can find in the G70 plus more, this system is your new best friend for brewing up to 38L of beer and filling 2 x 19L corny kegs. With a max grain bill of 13kg, you can adjust a high ABV recipe to a smaller batch volume, allowing you to brew larger grain bills that can easily go above 9%ABV

Just like the G70, you can manage your brew remotely with the smart controller that has built-in wireless connectivity. Simply connect your mobile device to the controller and manage your brew through the FREE Grainfather App. Once connected, you’ll have access to a step-by-step brewing system and thousands of recipes to choose from, or you can easily create your own.

App Store   Google play

Batch Volume:     Grain bill:

Maximum: 40l       Maximum 13kg

Minimum: 10l         Minimum 3kg



G40 body built out of high grade, 304 stainless steel

Heats wort evenly with conical shaped surface mounted heating element

Conical base for maximum wort transfer

Connect your mobile device to the smart controller with built in wireless connectivity via the Grainfather App and manage your brew remotely. The Grainfather brewing app has all the tools, calculators and recipes that empower you to create amazing beer at home. Or get creative and design your own with the feature packed recipe creator!

Comes with a counterflow wort chiller for a more efficient and sanitary wort transfer

PID (proportional integral derivative) a specially developed algorithm for managing accurate and consistent mash temperatures

Quick and easy cleaning with CIP (clean in place) capability

Integrated sight glass for easy volume reading

Rolled edge grain plate and perforated basket for easy mashing

Large bottom mounted hop filter reduces pump and chiller blockages


We’re confident that Grainfather products will produce professional results, just like the craft breweries. That’s why every G40 comes with a 3-year warranty from Grainfather, fully supported by The Malt Miller

Grainfather G40 Instructions

G40 Tech Sheet


Grainfather G40

Smart controller with built in wireless connectivity

Counterflow wort chiller

Built in pump

Glass lid

Grain basket lifting bar

Grain basket

Recirculation hose

Grain plate

Hop filter

Fittings to connect hoses


Size: 725 x 555mm

Weight: 29kg

Max pre-boil volume: 46L

Batch volume: Maximum: 40L | Minimum: 10L

Grain bill: Maximum: 13kg | Minimum: 3kg

Note: max weight depends on grain crush, type and variety. Large grain bills may also require the use of an additional grain plate.

Power: 2900W, 230V

Connectivity: Wireless control

Additional information

Weight 30 kg
Country of Origin CN
HS Code 8438400000
