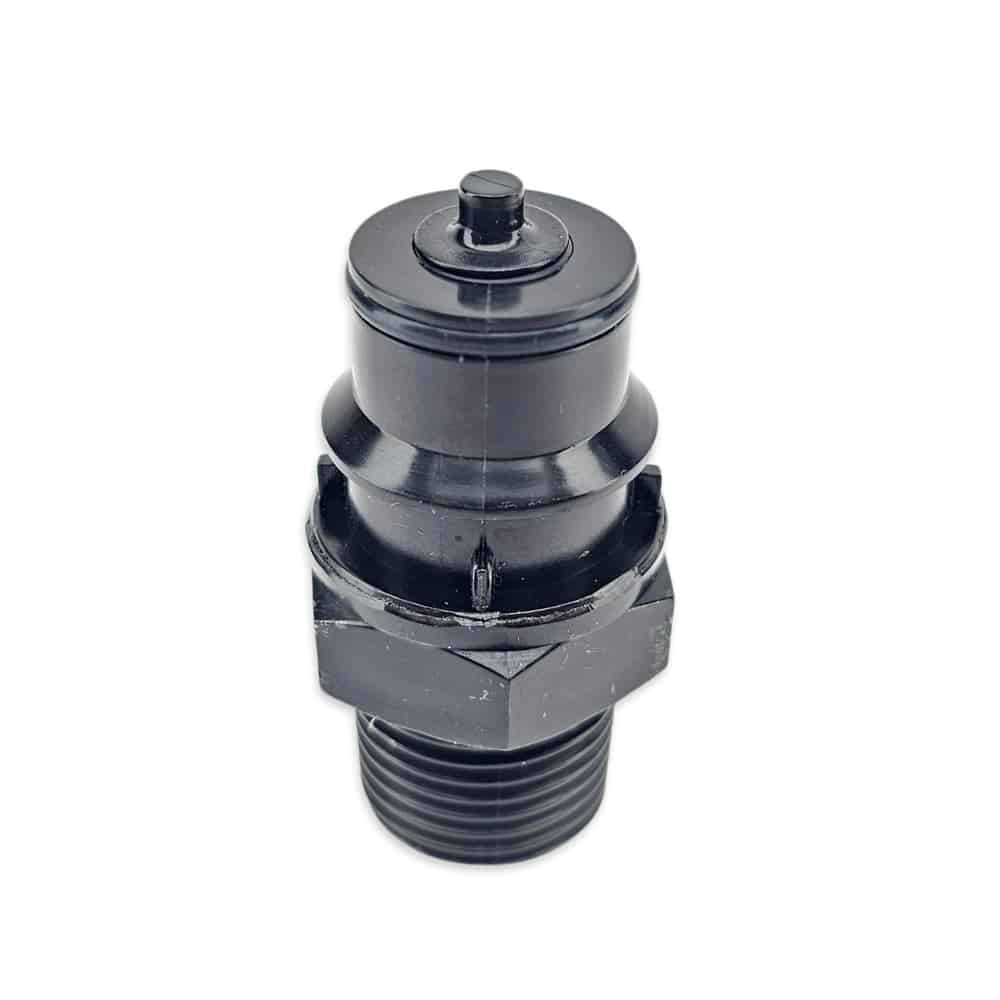

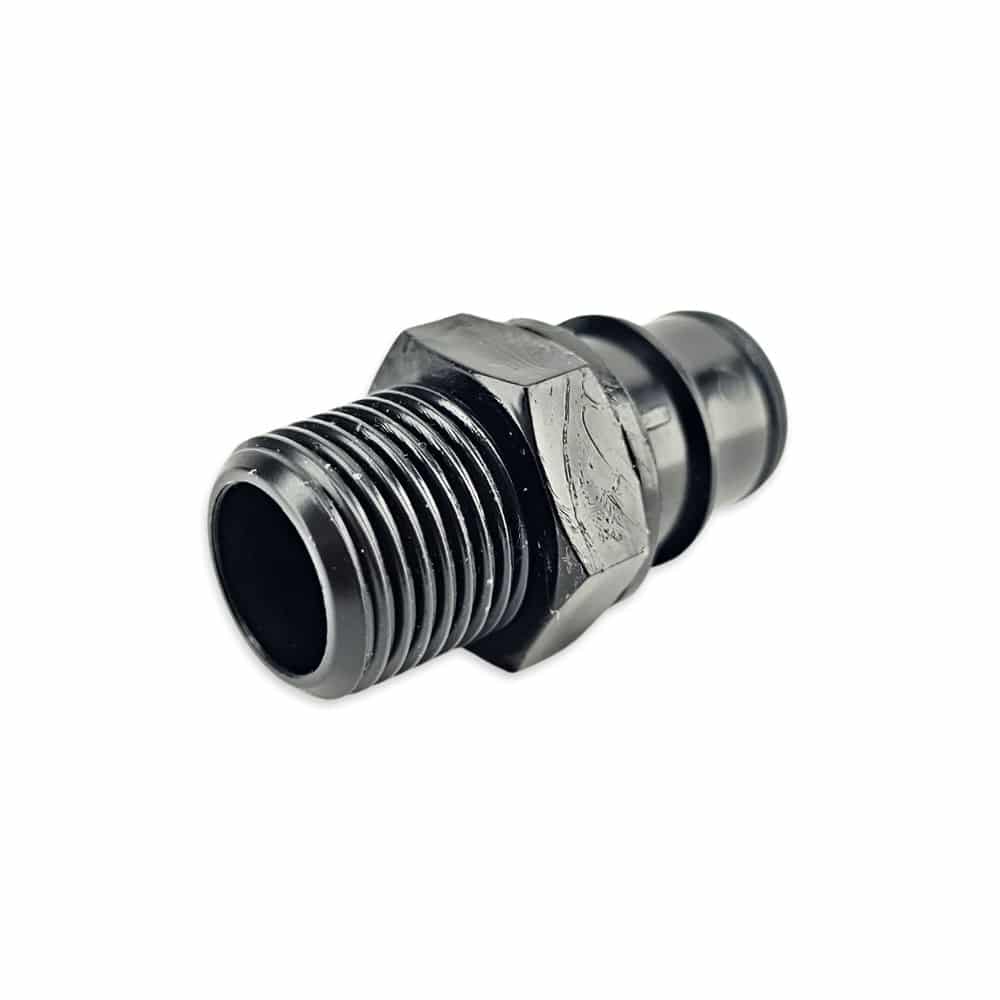

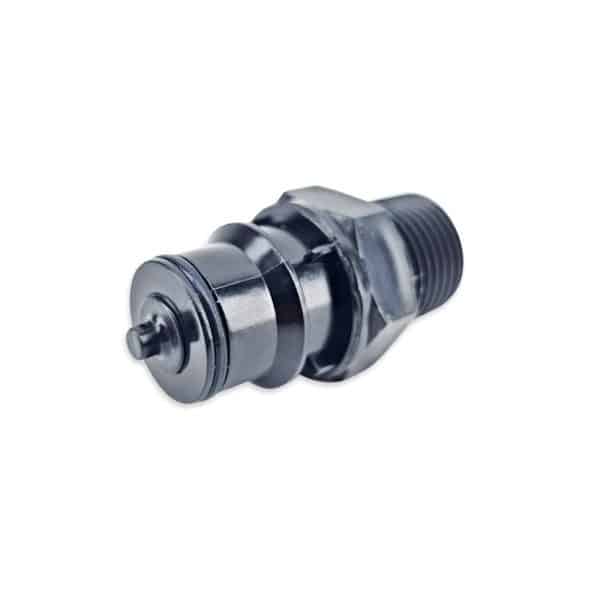

JoinTech Connectors are premium quick-disconnect fittings engineered for high-performance beverage handling in both hot and cold applications. Whether you’re transferring high-temperature fluids on the hot side or managing subzero glycol mixtures, JoinTech delivers reliable, leak-free performance under demanding conditions. Designed for durability and ease of use, these connectors ensure smooth operation across a wide temperature range—making them the trusted choice for breweries, beverage production, and other critical fluid handling systems.

When not connected to another JoinTech Connector this will not allow any flow. Incredibly useful on the hosing used to attach to Pumps or Glycol systems.

Compatible with:
JoinTech 13mm Barb x Female Connector with Auto Shut Off

Blue Insulated Hose – 2m Roll x 12mm ID x 16mm OD – Foam 15mm Thick

Red Insulation Hose – 2m Roll x 12mm ID x 16mm OD – Foam 15mm Thick

Features:

• JoinTech Black UV Stable Design
• Equipped with Auto Shut Off Valve
• Vacuum Rating of 60psi
• Connections:
  • Male Plug Quick Disconnect
  • 1/2″ BSP
• Medical Grade Materials:
  • Body: High-Strength, Chemically Resistant Polyketone Plastic
  • Spring: 316 Stainless Steel
  • O-Ring: EPDM
• Operating Pressure: Vacuum to 60 PSI
• Temperature Tolerance: -40°C to 138°C
• 3/8″ Flow Path
