KegLand Fill-O-Meter – Automatic Water Volume Controller

A genuinely useful bit of kit for brew day when dealing with water. The KegLand Fill-O-Meter removes the guesswork (and the standing around) from filling vessels with mains water. Set the exact volume you need, press start, and get on with the rest of the job — mash prep, hop weighing, cleaning, or whatever else needs doing.

Unlike simple tap timers that work on time alone, the Fill-O-Meter measures actual water volume and automatically shuts off when your target is reached. No overfills, no spillages, and no babysitting the hose.

Suitable for brewers of any skill level, and an excellent gift for anyone who brews — because every brew day starts with water.

Designed for Water Use

This unit is intended for water only and is ideal for:

• Filling HLTs and brewing vessels

• Filling fermenters with cleaning or brewing water

• General water measurement around the home or garden

It is not intended for wort, beer, or other brewing liquids.

Why you’ll want one

• Set a precise water volume and walk away

• Automatically shuts off at the programmed volume

• Displays real-time flow rate and total volume

• Saves time and prevents costly spillovers

• Simple, robust, and very much the KegLand way

Key Features

• Measures water volume, not time

• Real-time display: Litres/min or Gallons/min

• Accurate control from 1–30 L/min

• Integrated flow meter and solenoid valve

• Illuminated 3″ display for low-light use

• Audible completion alarm

• Splash-resistant ABS housing

• Standard ½” BSP inlet and outlet

• Measures water usage for garden or utility tasks

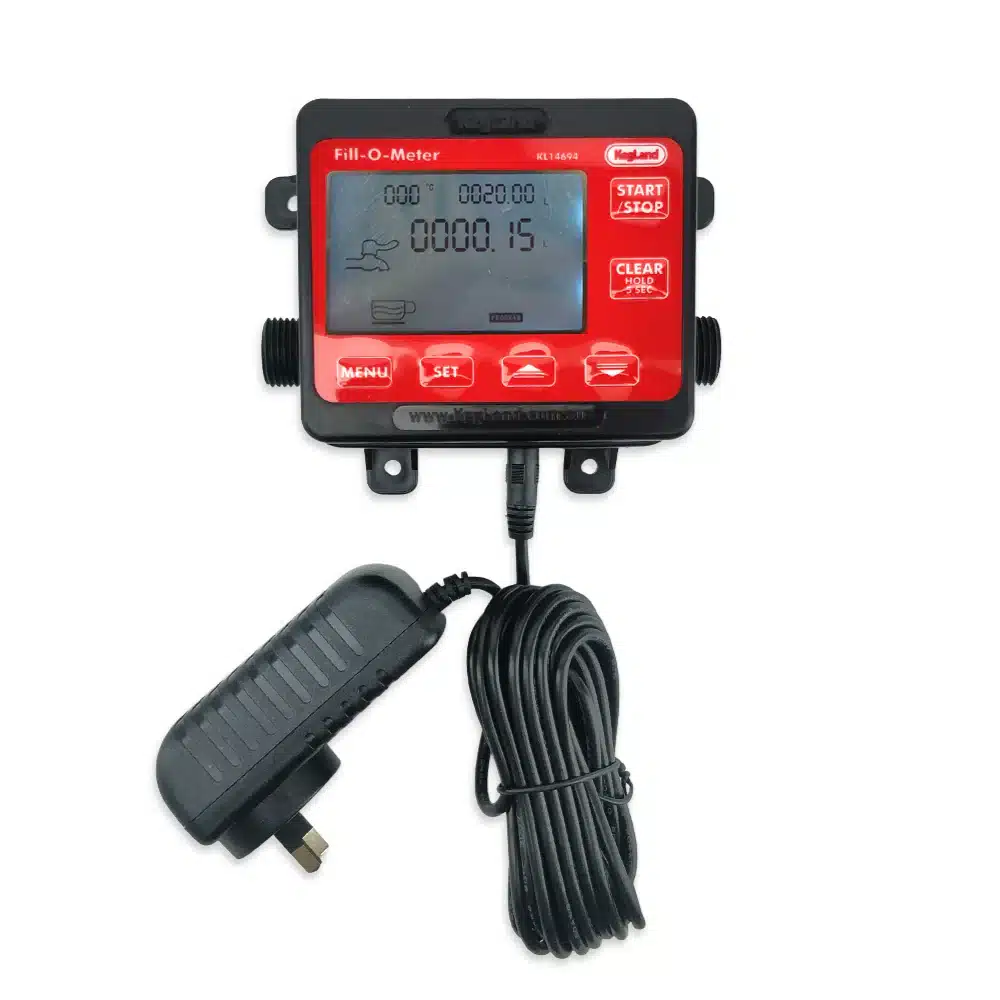

Power & Included Accessories

• Mains powered — no batteries required

• Supplied with both UK and EU power supplies

• Failsafe design: if power is lost, water flow stops automatically

Installation Notes (Important)

We recommend pairing the Fill-O-Meter with:

• Garden hose connectors, or

• Type A camlocks (thread tape required)

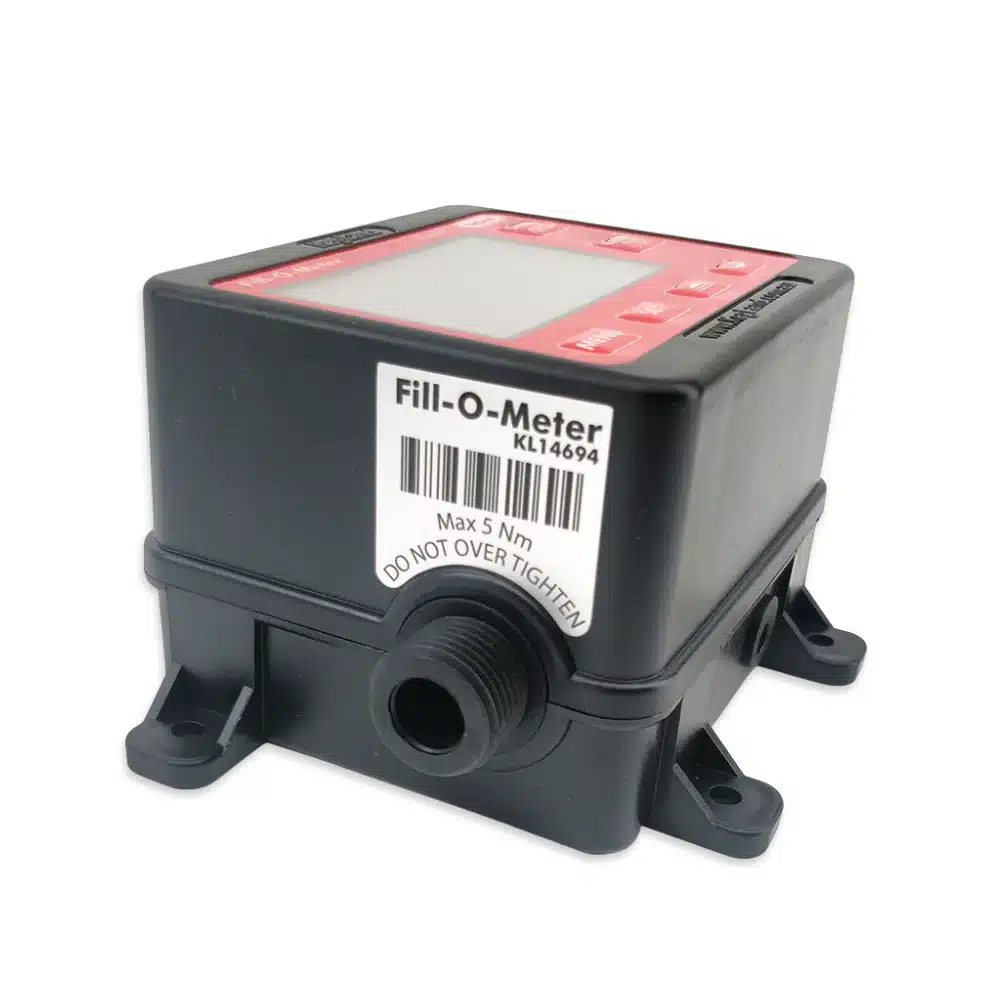

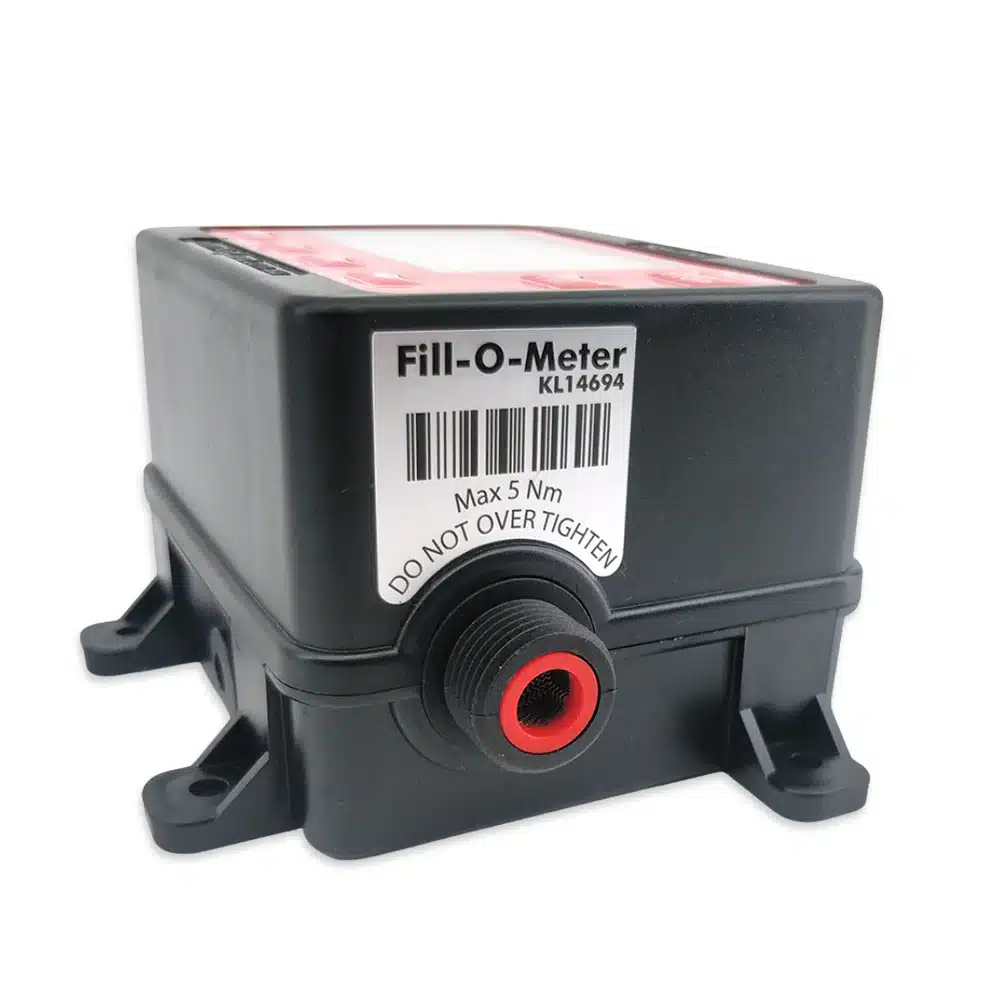

⚠️ Do not overtighten fittings. The inlet and outlet ports are plastic.
Use PTFE tape sparingly — excessive tape or force can damage the threads.

Important Warnings

• Water use only

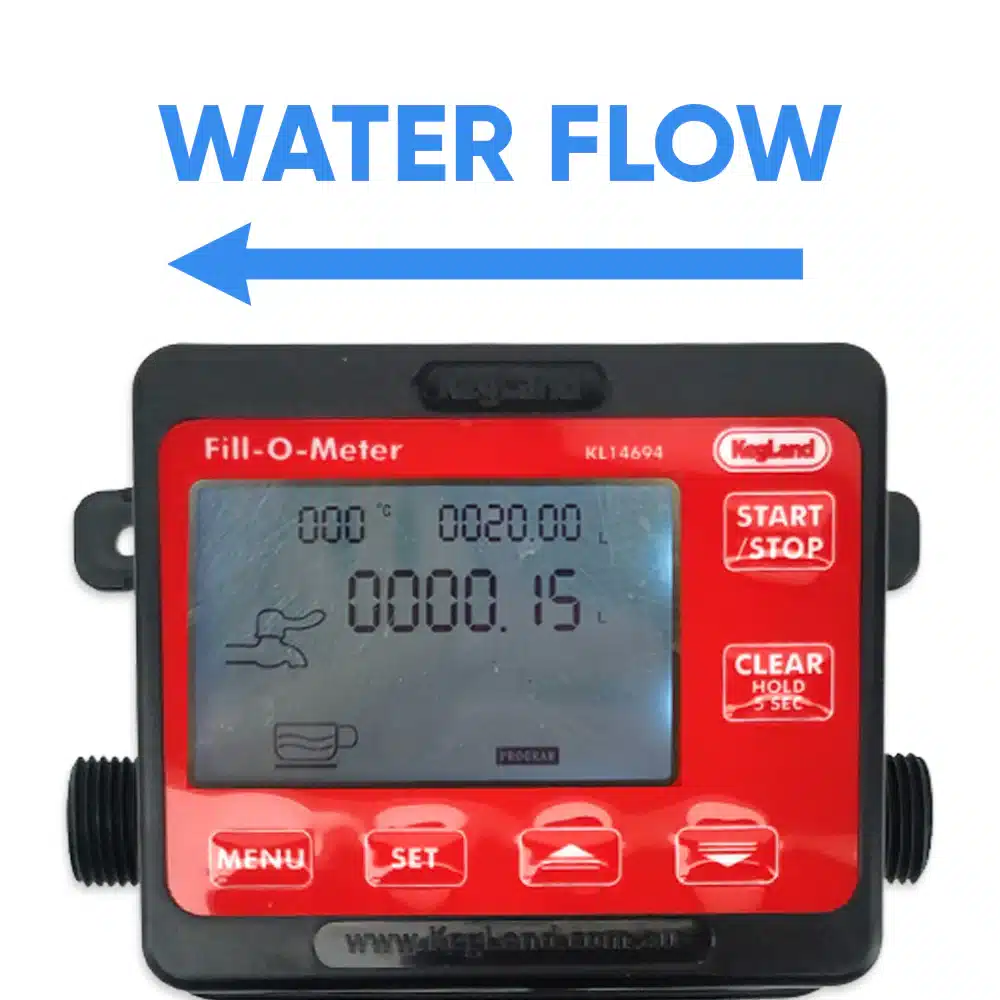

• Do not flow liquid in the reverse direction

• Do not overtighten fittings

• Do not exceed temperature limits

• Maximum liquid temperature: 80°C

Failure to follow these guidelines may damage the unit.

Specifications

• Power Supply Input: 100–240V AC (50/60Hz)

• Power Supply Output: 24V DC, 1.5A

• Flow Range: 1–30 L/min

• Pressure Rating: 0–12 bar (0–180 psi)

• Temperature Range:

  • 0–40°C at mains pressure (up to 180 psi)

  • Up to 80°C at reduced pressure (60 psi)

• Accuracy: ±5%

• Display: 3″ back-lit LCD

• Housing: ABS

• Connections: G ½” BSP inlet & outlet

Accuracy is best with a stable water flow. Repeated start/stop or fluctuating supply pressure can affect readings.
