Description

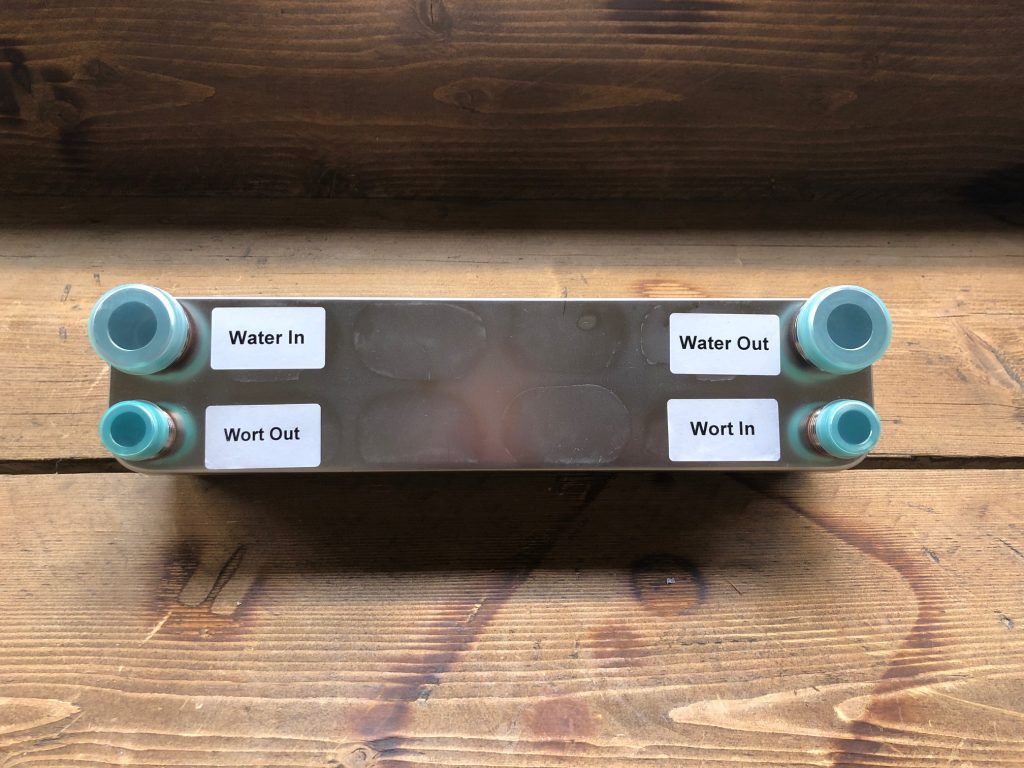

30 plate, 125kw wort chiller.
2 ports are 1/2 inch BSP ( wort ) and 2 ports are 1 inch BSP ( water ).
Please see our hose barbs and silicone tubing for set up, alternatively Cam lock type A’s can be used on the wort side along with Cam Lock type C’s for the silicone tubing.
For the water side, use 1″BSP fittings
Dimentions
310mm long
70mm wide
75mm high
95mm high including ports.
Jolyon Barrow (verified owner) –
Very impressed with this chiller, gets me within a few degrees of tap water temperature on a single pass. I did make sure to get all the air out and fixed a tap on the outlet to control flow. I used it with a brewing pump but I’m sure gravity feed would work.
I actually acheived below tap water temperature on my last go by running the feed water through my old immersion chiller in an ice bucket.
