Produce exceptionally clean neutral spirit with the Still Spirits Create+ T500 Column & Condenser, one of the most trusted reflux distillation systems available to home distillers worldwide. Engineered in New Zealand and redesigned as part of the Create+ range, the T500 combines proven performance, premium materials and modern modular compatibility to deliver outstanding results batch after batch.

Capable of producing spirit at up to 93% ABV, the T500 is designed for distillers seeking a highly refined neutral alcohol suitable for vodka, gin, liqueurs and flavour-infused spirits. Its integrated reflux column design simplifies operation while maximising purity, making it suitable for both ambitious beginners and experienced distillers alike.

Compatible with the Still Spirits Create+ Boiler 25L and Grainfather G30, G40 and G70 Brewing Systems, the T500 offers a flexible platform that can grow alongside your distilling journey.

Why Choose the Create+ T500?

The T500 has earned its reputation as one of the most popular reflux stills on the market thanks to its ability to consistently produce exceptionally clean spirit with minimal effort.

Unlike simple pot stills, the T500 uses a packed reflux column filled with copper and stainless steel saddles. As vapour rises through the column, repeated condensation and re-evaporation cycles help separate alcohol from unwanted compounds, resulting in a cleaner, purer distillate.

The result is:

• Cleaner neutral spirit
• Higher alcohol purity
• Reduced unwanted flavours and aromas
• Excellent consistency
• Greater efficiency during distillation

For many distillers, the T500 is the ideal starting point for producing vodka-quality neutral spirit at home.

Produce High Purity Neutral Spirit

The Create+ T500 is specifically designed to create highly refined neutral alcohol.

Typical performance includes:

• Distillation up to 93% ABV
• Recovery of up to 95% of the alcohol from your wash
• Approximately 8 litres of 40% ABV spirit from a 25L wash
• Clean flavour profile ideal for further processing

This makes it perfect for creating:

• Vodka
• Gin bases
• Botanical spirits
• Flavoured spirits
• Liqueurs
• Neutral alcohol for ageing projects

The cleaner the neutral spirit, the better the final flavour when adding botanicals, oak or flavourings.

Excellent for Water Distillation

The T500 is also highly effective for water distillation.

The combination of copper and stainless steel packing helps remove impurities and contaminants more effectively than many basic water distillation systems, making it suitable for producing high-quality distilled water when used according to manufacturer instructions.

Modular Create+ Design

The updated Create+ platform introduces greater flexibility than previous generations.

Featuring a 2″ tri-clamp connection, the T500 can be connected to compatible 2″ tri-clamp accessories, allowing users to expand and customise their setup as their experience grows.

Benefits include:

• Easier cleaning and maintenance
• Improved modularity
• Future upgrade options
• Compatibility with other Create+ components

Premium Construction

Built using high-quality 304-grade stainless steel, the Create+ T500 is designed for long-term durability and corrosion resistance.

Features include:

• 304 stainless steel construction
• Copper and stainless steel saddles
• Integrated condenser design
• Digital thermometer
• Precision-engineered fittings
• Robust tri-clamp connection

Every component has been designed to deliver reliable performance and a long service life.

Compatible Boilers & Systems

The Create+ T500 Column & Condenser is designed for use with:

• Still Spirits Create+ Boiler 25L
• Grainfather G30 Brewing System
• Grainfather G40 Brewing System
• Grainfather G70 Brewing System

Boiler not included.

What’s Included?

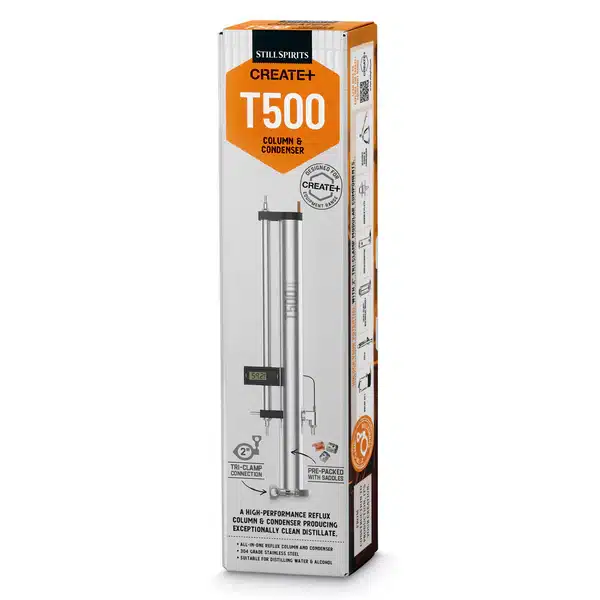

• Create+ T500 Column & Condenser
• Create+ 2″ Tri-Clamp
• Pre-packed Copper & Stainless Steel Saddles
• Digital Thermometer
• 2 x Cooling Water Tubes
• Ceramic Boil Enhancers
• Tap Adapter Flow Controller
• Kitchen & Garden Tap Adapters
• Instructions

Technical Specifications

T500 Column & Condenser

• Height: 69cm
• Width: 8.5cm
• Depth: 16cm
• Weight: 2.3–2.99kg
• Material: 304 Grade Stainless Steel
• Connection: 2″ Tri-Clamp
• Warranty: 3 Years

Performance

• Distillation Type: Reflux
• Recommended User Level: Intermediate
• Maximum Purity: Up to 93% ABV
• Alcohol Recovery: Up to 95%
• Yield: Approx. 8L of 40% ABV spirit from a 25L wash*
• Cooling Water Usage: Approx. 200L per 25L distillation**

* Based on a 25L wash using the standard Turbo Classic 8 recipe.

** When used with the Create+ Water Flow Regulator.

Who Is the T500 For?

The Create+ T500 is ideal for:

• Home distillers seeking high-purity neutral spirit
• Gin makers
• Vodka production
• Botanical spirit enthusiasts
• Advanced home brewers expanding into distillation
• Users wanting a modular, upgradeable system

Its combination of simplicity, performance and flexibility has made it one of the most widely used reflux columns in home distilling.

Disclaimer

Please note that alcohol distillation and ownership of distillation equipment may be restricted or regulated in some countries and regions. It is the responsibility of the purchaser to understand and comply with all local laws and licensing requirements before purchasing or operating distillation equipment.
