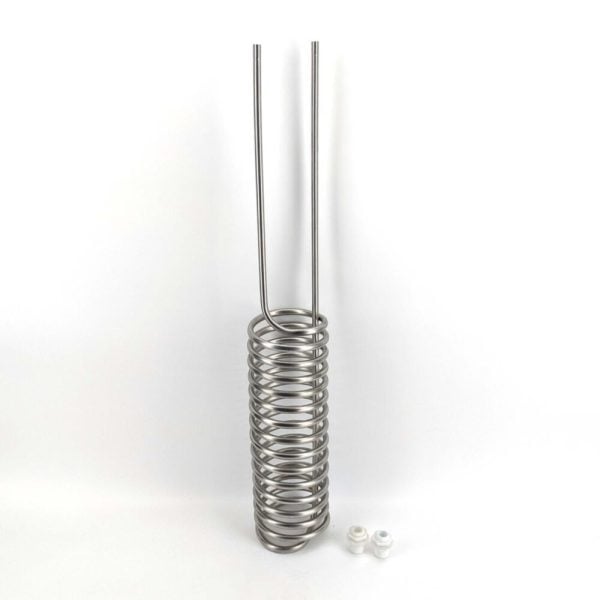

Temp Twister Stainless Steel Cooling/Heating Coil

Specifications

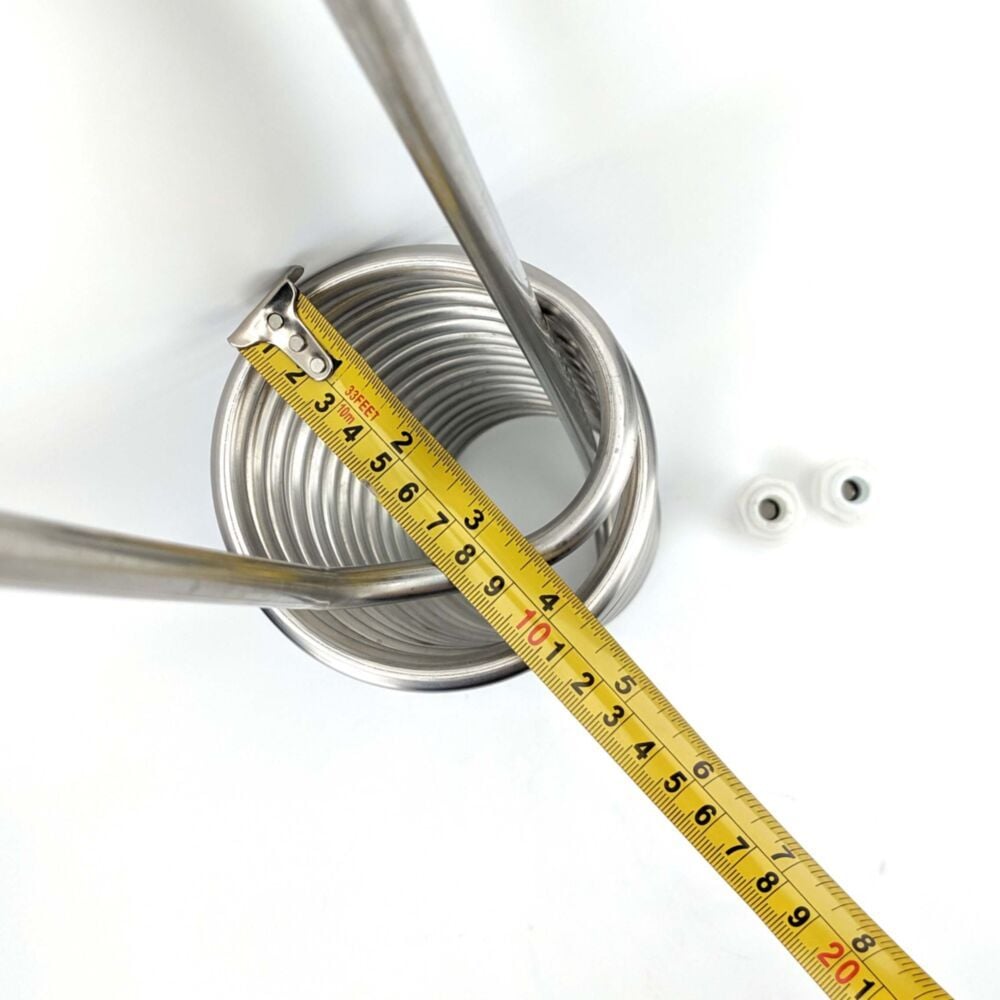

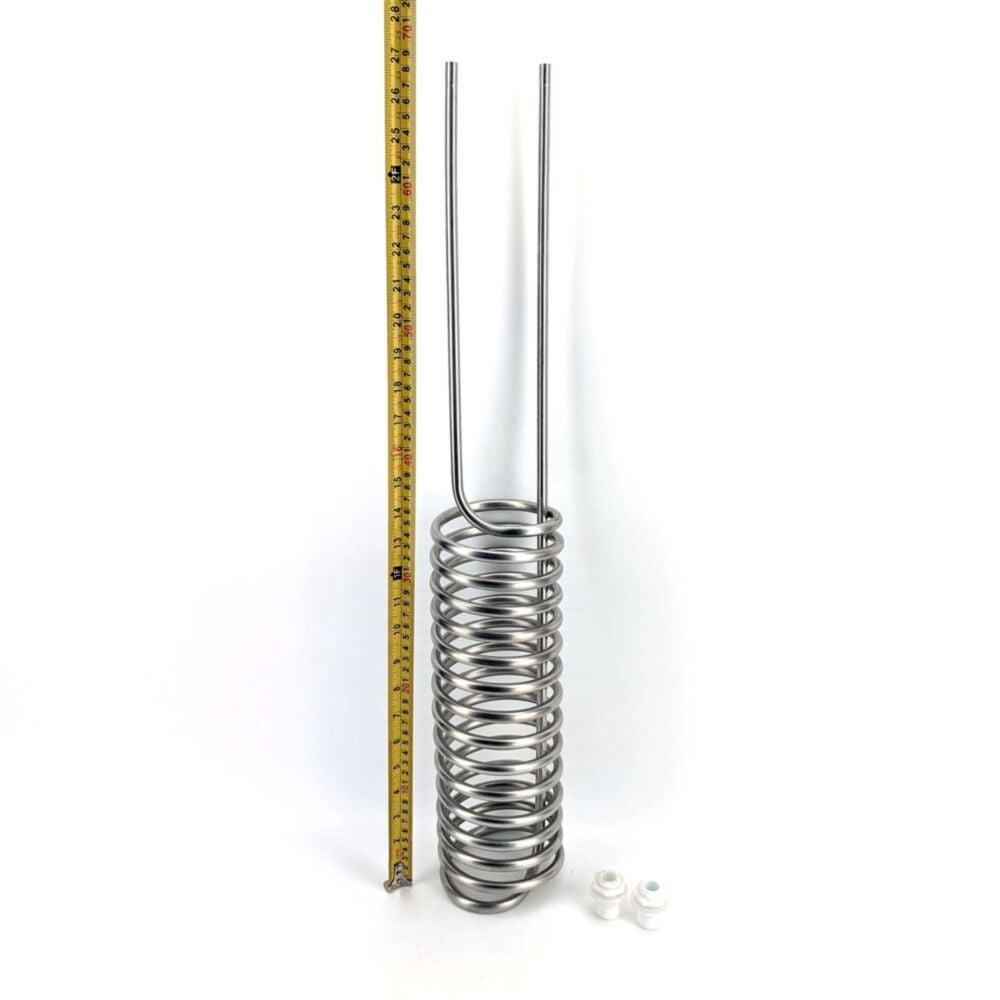

Coil Diameter x Height: 11cm x 68cm High

Material: 304 Stainless Steel

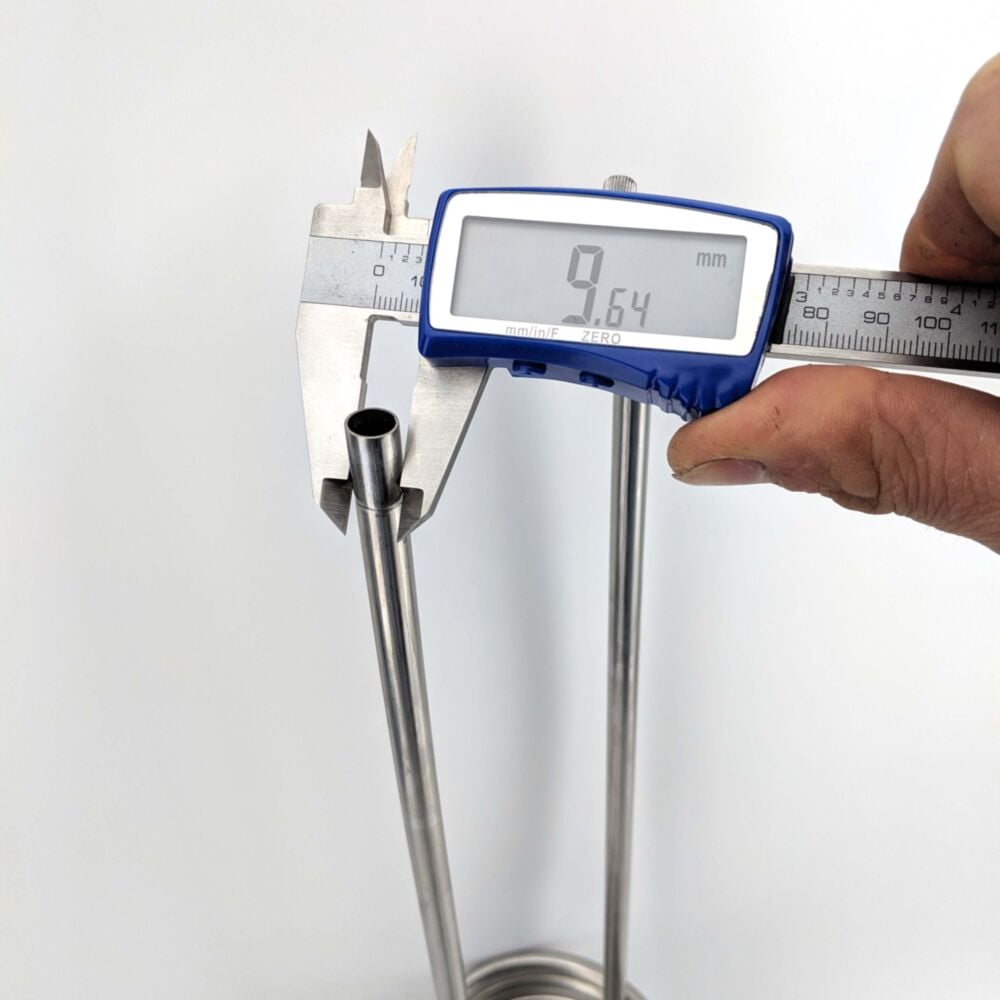

Coil Thickness: 9.5mm OD (3/8″)

Coil Lenth: 6meters

This coil can be adapted to fit any fermenter or bright tank that has an opening of 110mm diameter or larger. These are suitable for use in the FermZilla range and ship with the required bulkhead fittings.

2 x 22mm holes are required, these can easily be drilled using a stepped bit. If the tubing needs to be trimmed use this handy pipe cutter

With the addition of the Temp Twister in conjunction with a temperature controller and submersible pump such as the FTSs from Ss Brewtech, this will form a very effective stand alone temperature control system.
