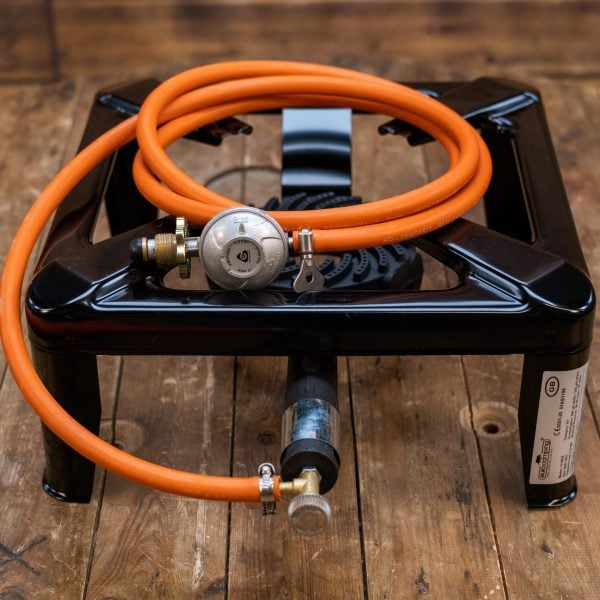

Complete gas set up for heating a boil kettle or HLT including:-

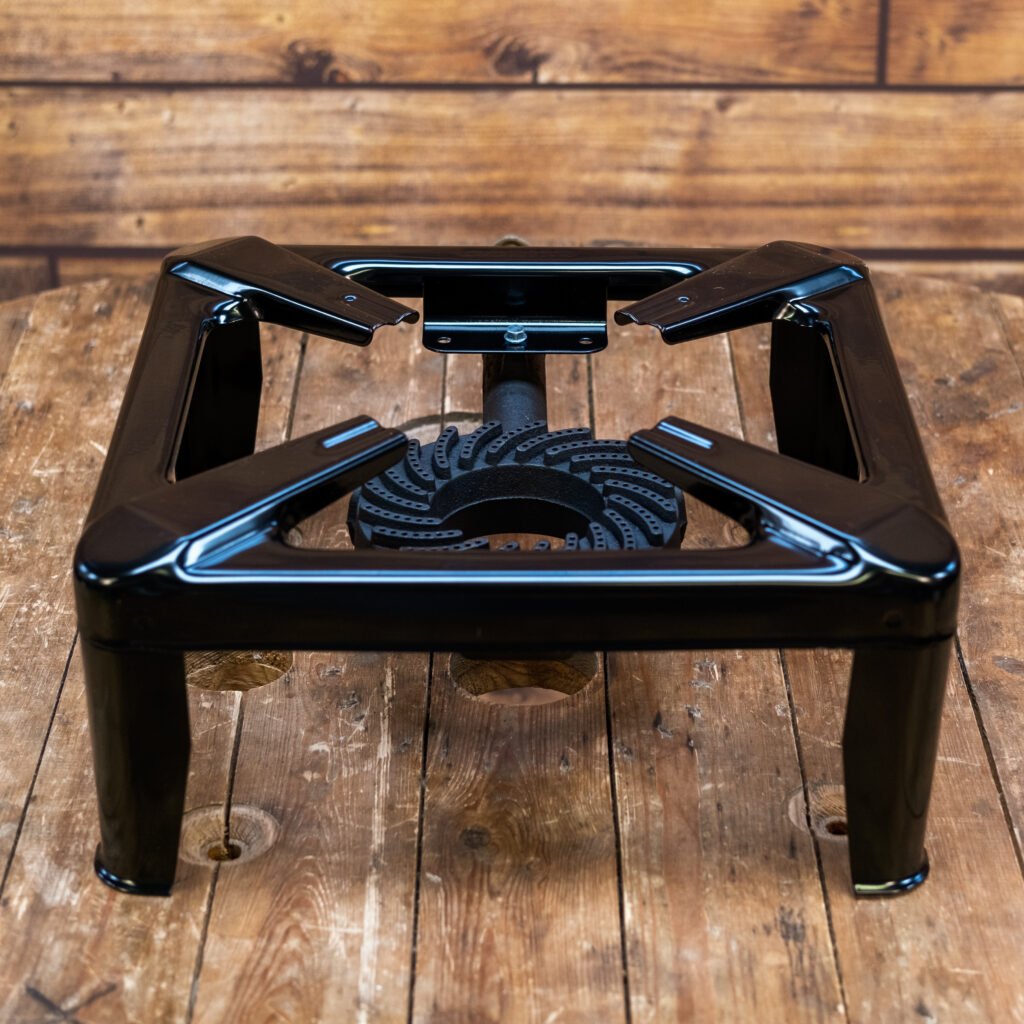

Large 7.5kW output cast iron gas burner in a strong pressed steel, painted frame.

37Mbar Propane regulator suitable for propane bottles with screw in regulators

2m High pressure gas hose and butterfly hose clamps for a leak free system.

Suitable for all our stainless steel kettles.

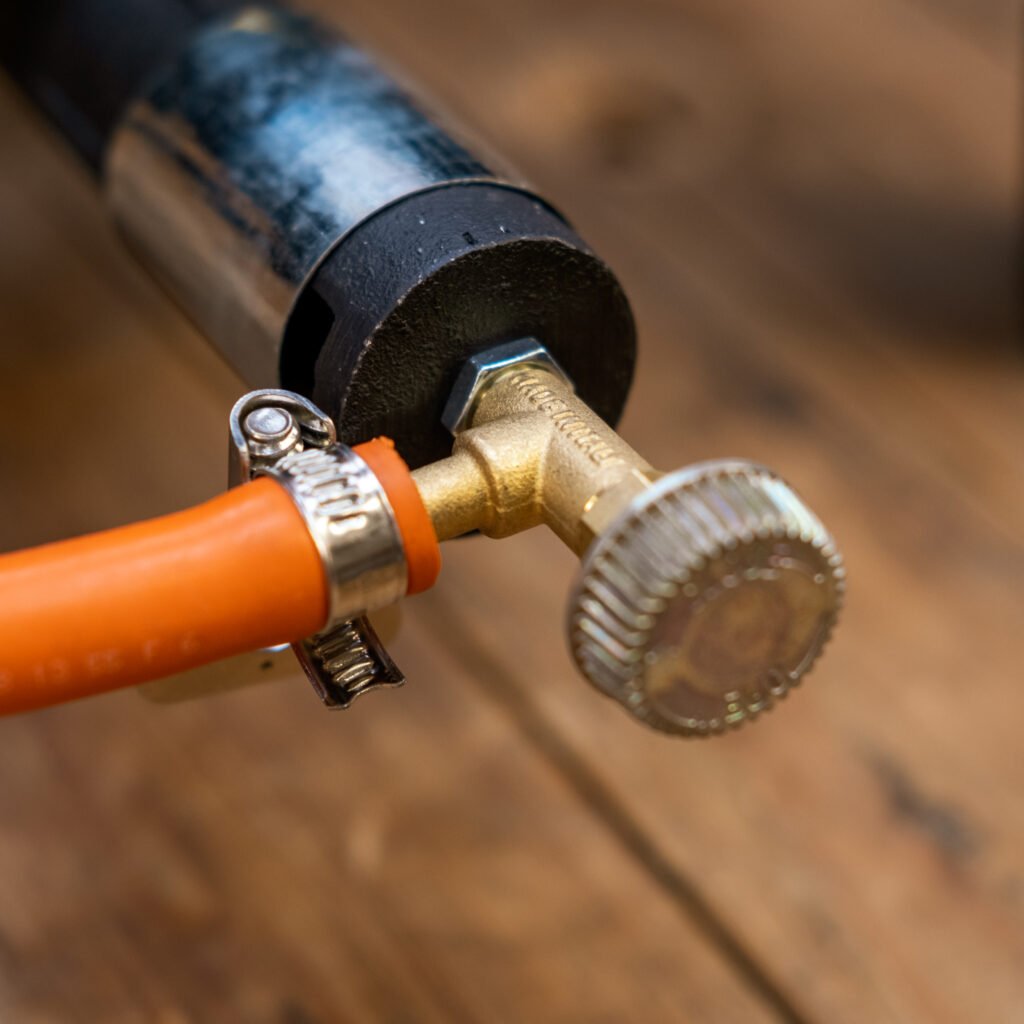

Very easy operation, simply close the silver collar over the air hole, turn on the gas supply and light. This will produce a wispy orange/yellow flame. Adjust the collar so that the air hole is completely exposed. This will turn the flame bright blue and ready to use. Adjustment to the flame is vial a turn wheel located on the burner itself, it is very easy to adjust, just think of your gas hob, it is the same deal.

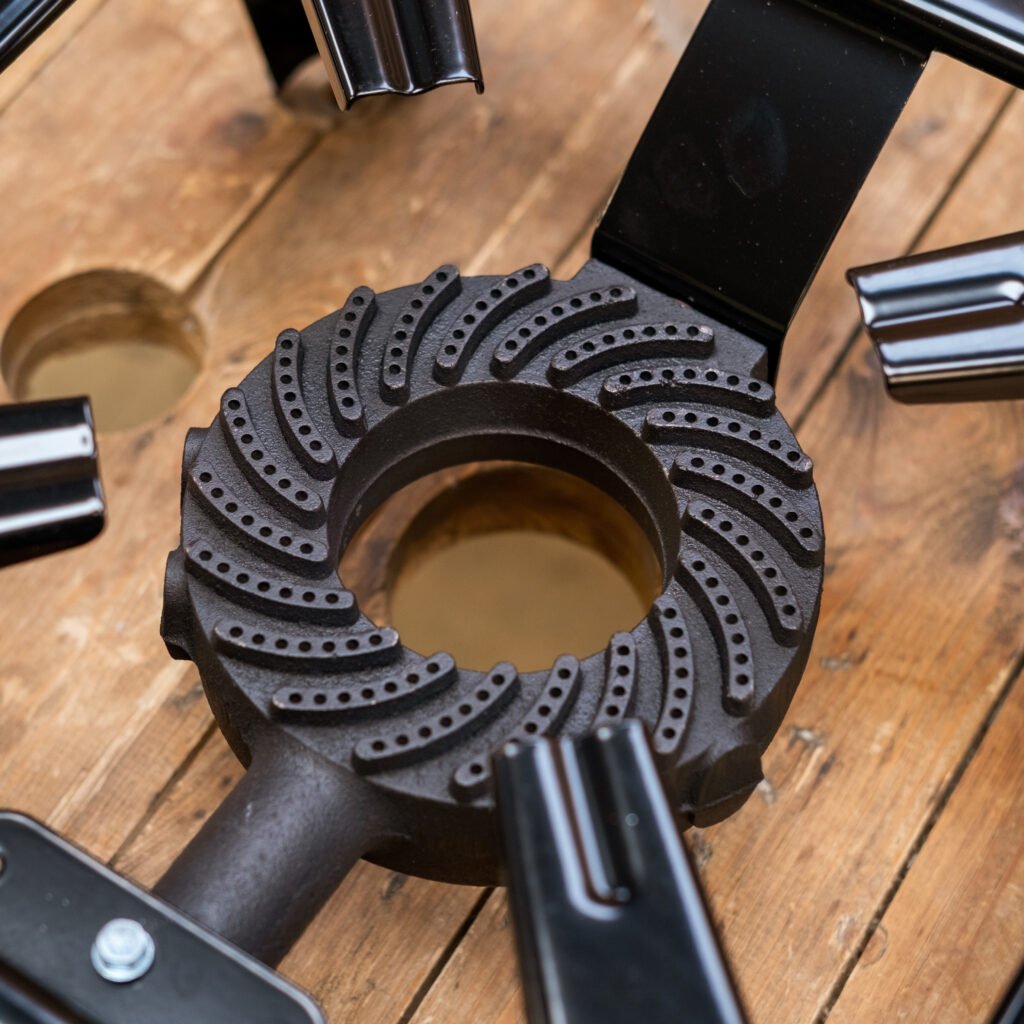

The cast iron burner is one piece and is held within the frame by three bolts which the use is required to fix, everything that is required for the burner is included.

Dimensions 400mm x 400mm x 180mm.
