The Brewtools B100 Mash Tun is designed to expand your Brewtools B100 into a more capable 2-vessel brewing system, increasing malt capacity and improving workflow for larger batches and high gravity brewing.

By moving the mash into a dedicated external vessel, the B100 Mash Tun increases the system’s malt capacity and removes the need to lift the malt pipe with a crane. It is ideal for brewers who want to push the B100 further, brew stronger beers, improve process flexibility or make larger brew days more manageable.

Expand Your B100 to a 2-Vessel System

The B100 Mash Tun has been designed specifically for the Brewtools B100 Brewing System. It turns the B100 into a more flexible 2-vessel setup, giving you a dedicated mash vessel alongside the main brewing system.

This is especially useful for high gravity brewing, larger grain bills and brewers who want an easier way to handle spent grain after the mash.

Easy Spent Grain Removal

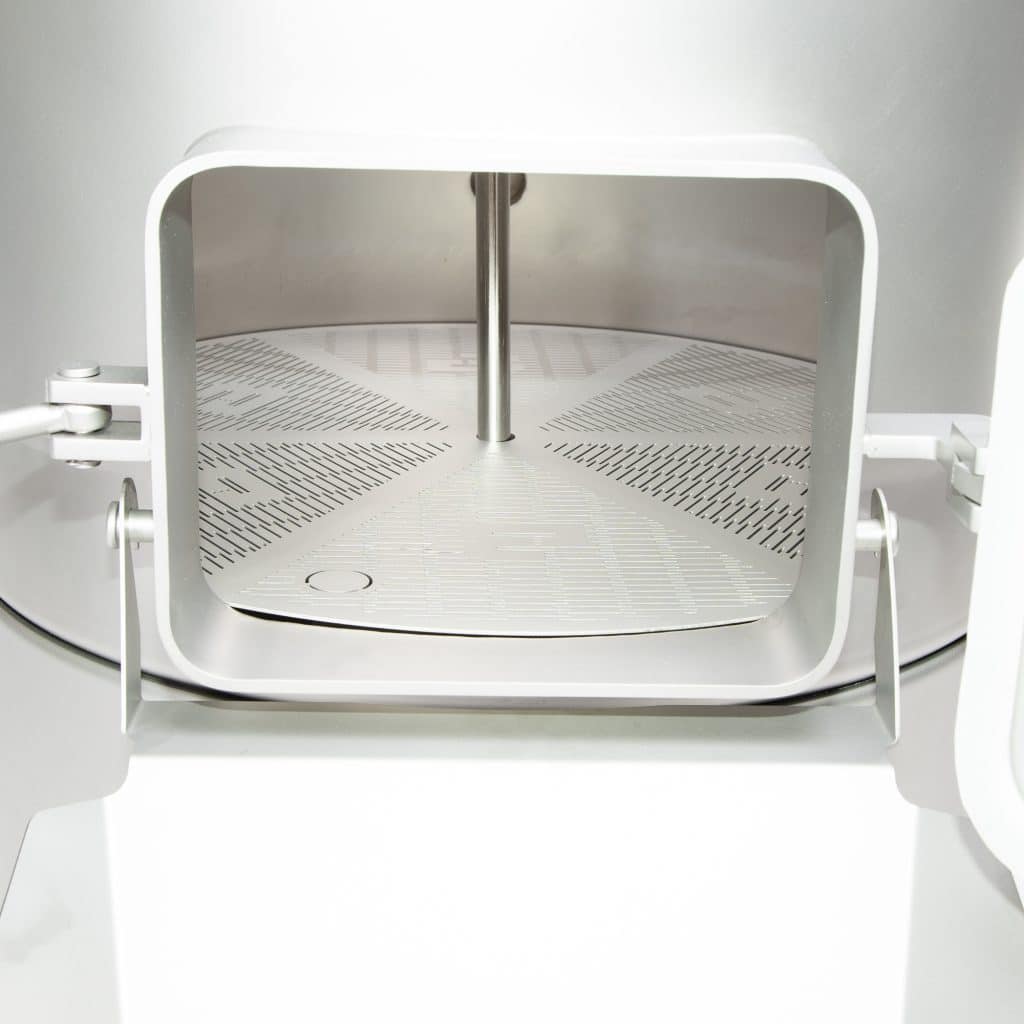

The tank comes with a grain door and malt chute, making it much easier to empty spent grains at the end of the mash. This removes the need to lift a heavy malt pipe and helps make larger brew days more practical.

Integrated FCS Brew Pump

The B100 Mash Tun includes an integrated FCS Brew Pump, which connects to your B100 system. The pump is automatically controlled by an integrated top level sensor, helping manage wort flow during the mash process.

CleanCore 3-Way Valve and Centre Pipe Recirculation

The mash tun uses the same bottom CleanCore 3-way valve as the B100. Wort is circulated over the grain bed through the centre pipe, giving a clean, controlled and practical mash recirculation setup.

Key Features

External mash tun for the Brewtools B100

Expands the B100 into a 2-vessel brewing system

Increases malt capacity

Removes the need to lift the malt pipe with a crane

Grain door and malt chute for easier emptying

Integrated FCS Brew Pump

Integrated top level sensor for pump control

Same bottom CleanCore 3-way valve as the B100

Wort recirculation through centre pipe

304 stainless steel construction

Designed for large batch brewing and high gravity brewing

Specifications

Total Volume: 110 litres

Grain Capacity: 38kg

Materials: 304 stainless steel, food grade silicone, EPDM, POK

Full Height: 835mm

Tank Dimensions: Ø500mm x 465mm high over filter, 111 litres

What’s in the Box?

B100 Mash Tun with lid and malt chute

Centre pipe for B100 Mash Tun

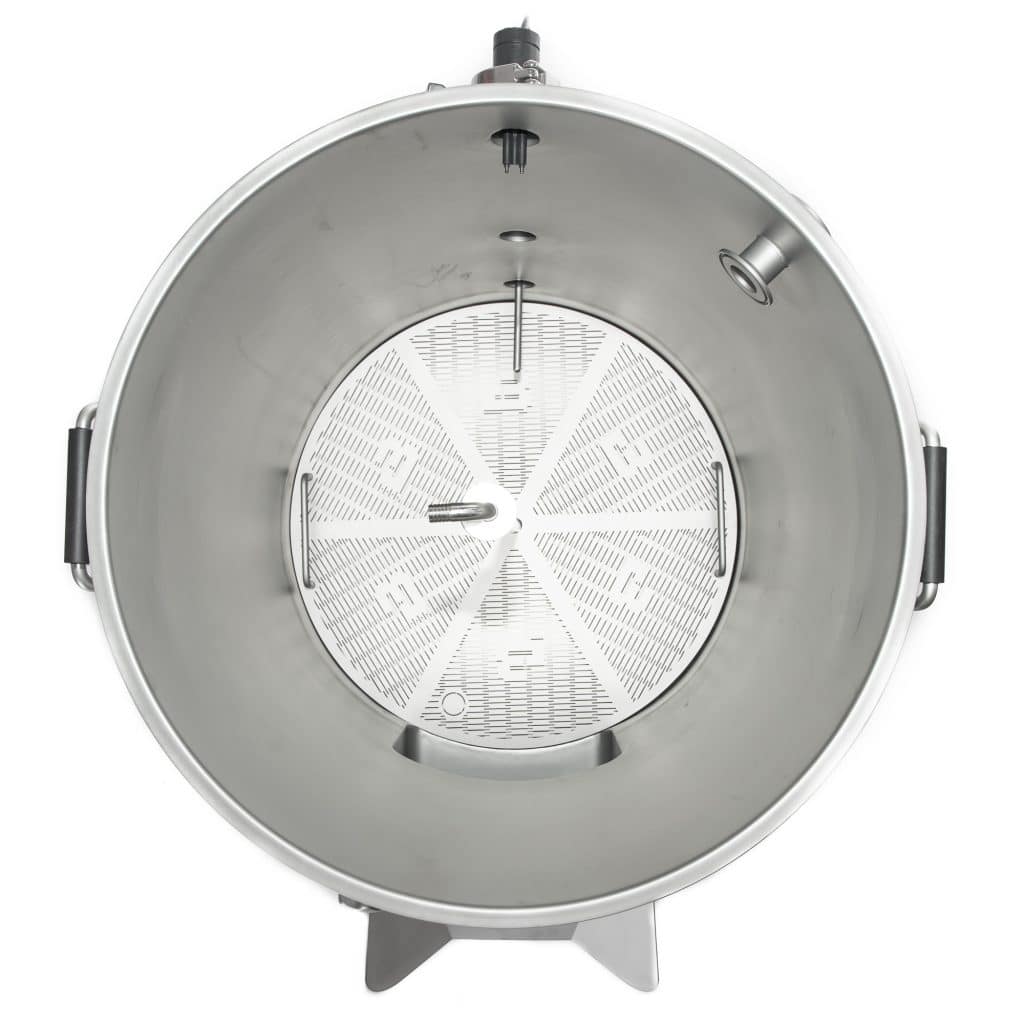

Laser cut filter for B100 Mash Tun

FCS Brew Pump TC 1.5 inch

CleanCore 3-way valve, TC 1.5 inch

Level switch sensor, TC 1.5 inch

Thermowell

Elbow, gaskets, tri clamps and accessories

Pre-Order Information

The Brewtools B100 Mash Tun is expected to ship from late September.

If ordered with other items, your order may be held until the B100 Mash Tun is ready to ship. To receive other items sooner, please place a separate order.
