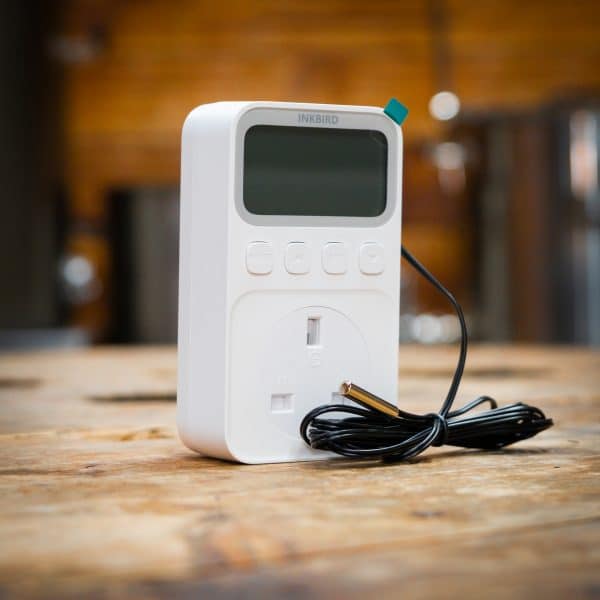

Introducing the INKBIRD C226T that will control elements up to 3680w on a 16 amp circuit.

Plug & Play: Easy to program and safe in use; Supports temperature mode, cycle time mode, and countdown mode, 3 control modes; Temperature control range: -40℉~212℉/-40℃~100℃; Power: UK 3680W(230Vac), 16A.

Safer In Use: It supports high and low temperature alarms with custom alarm values for use scenarios requiring more strict temperature control, and the buzzer can be muted; Also supports temperature calibration and refrigeration delay to maintain accurate temperature control and safe use at all times.

Temperature Mode: Just set START and STOP temperatures and it will automatically run in heating or cooling mode based on the set points. When Start Temperature＞Stop Temperature, it enters cooling mode; when Start Temperature＜Stop Temperature, it enters heating mode.

Timing Function: It features cycle time and countdown function and total of 4 modes can be selected—P01 Cycle Time Mode, P02 Countdown ON Mode, P03 Countdown OFF Mode, and P04 Countdown ON&OFF Mode. Timing range: 0~99 hours and 59 minutes. Please note that the temperature mode and timing function cannot be used at the same time.

More Functions: The IP67 waterproof temperature probe can be inserted into the soil or submerged in water, and the backlit LCD screen makes it easy to see the current temperature and set temperatures in the dark. It also supports temperature calibration, factory reset, child lock, and a memory function that can save all set parameters after a power failure.

Wide Application: This temperature control socket is widely applicable to greenhouses, reptiles, incubators, terrariums, freezers, refrigerators, heaters, home brewing, zoos, fermentation, heating mats, and other temperature control systems, and it can be a timer with cycle timing and countdown.

Main Features

Three control modes—Temperature Mode, Cycle Time Mode and Countdown Mode

40℉~212℉/-40℃~100℃ wide temperature control range with accurate measurement

Heating or cooling starts and stops automatically based on the preset temperatures

Supports high and low temperature alarms, refrigeration delay, and temperature calibration

Flexible timing function with 4 timing modes helps you manage time better

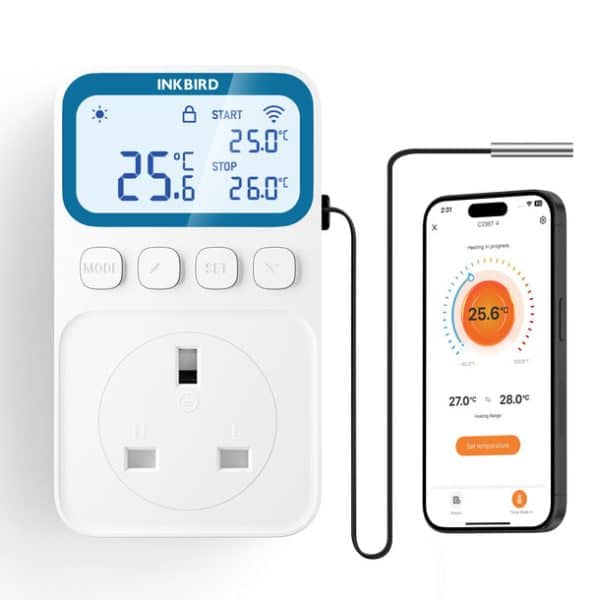

Backlit LCD display with a IP67 waterproof probe, easy to view temperature even in the dark

Supports child lock, factory reset, and memory function to save all settings after a power failure

Please note that at all times the maximum draw on a 13amp socket should be taken into account. If using a double socket make sure that the overall demand on the socket does not exceed 13amps.

Specifications

l Model: C226T

l Color: White

l Input: 100~240Vac 50/60Hz max 16A

l Output: 100~240Vac 50/60Hz max 16A,  3680W(230Vac)

l Temperature Control Range: -40℉~212℉/-40℃~100℃

l Temperature Display Accuracy: 0.1℉/℃

l Temperature Measurement Error: ±2.0℉/±1.0℃

l Refrigeration Delay Time: 0~10 minutes

l Temperature Calibration Range: -8.8℉~8.8℉/-4.9℃~4.9℃

l Maximum Timing Range: 99 hour and 59 minutes

l Time Error: ±2 seconds per day

l Operating Temperature: Room temperature

l Storage Temperature: 32℉~140℉/0℃~60℃

l Storage Humidity: 20%RH~80%RH (non-condensing)

 Package Contents

1x Timer Thermostat

1x User Manual
