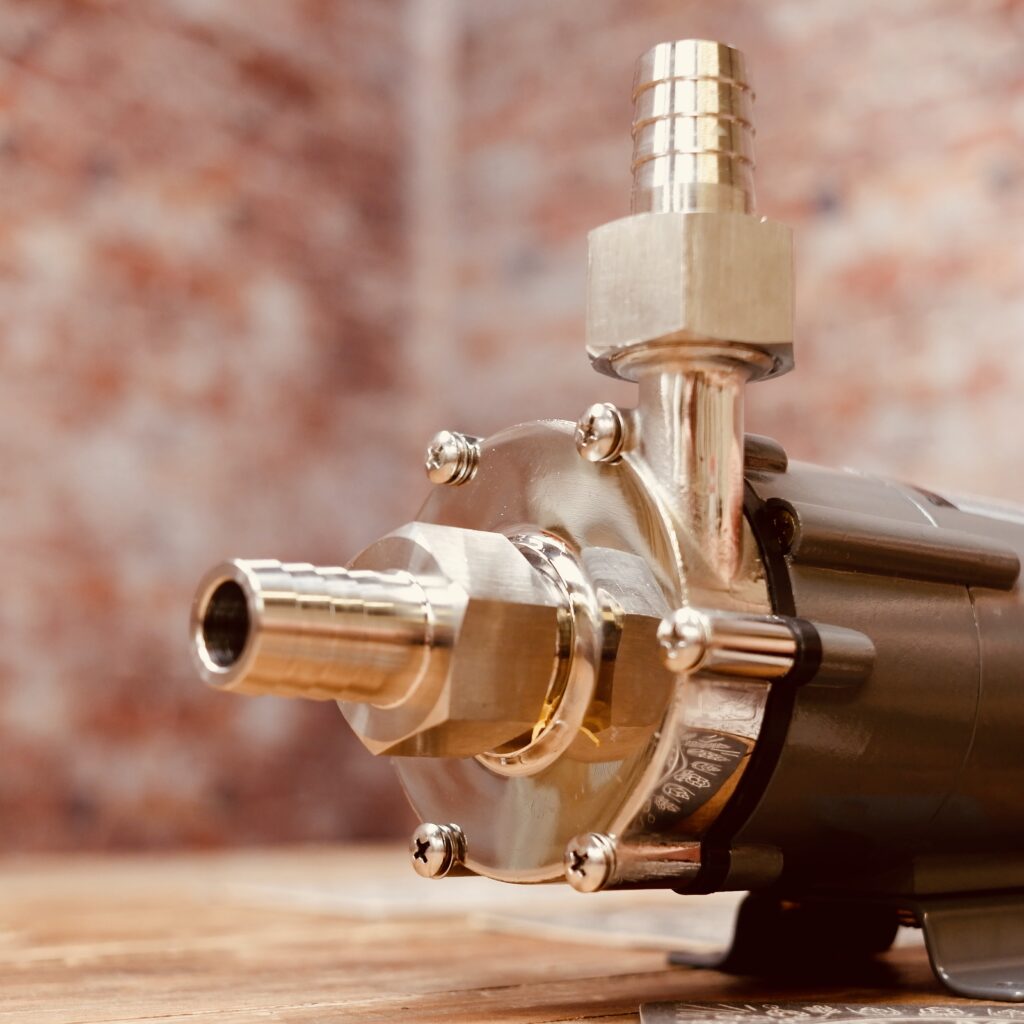

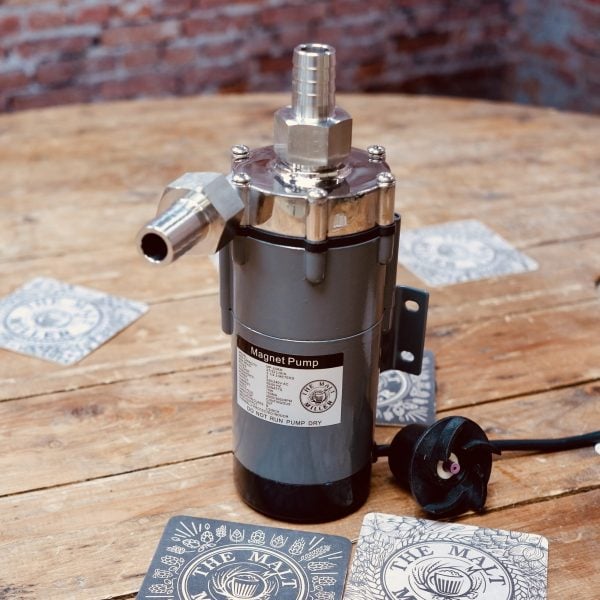

This pump has a stainless steel pump housing with ½” bsp threaded inputoutput ports. It has a 12 litres a minute flow rate with a 1.5mt head capacity. Maximum fluid temperature is 120 C.
The pump has a magnetically coupled impeller, which allows you to control the flow from the pump with a valve, useful for sparging for instance. You can close off the flow and the pump will not suffer any damage.
The pump is not self-priming and must not be run dry. Only use flow control on the output side.

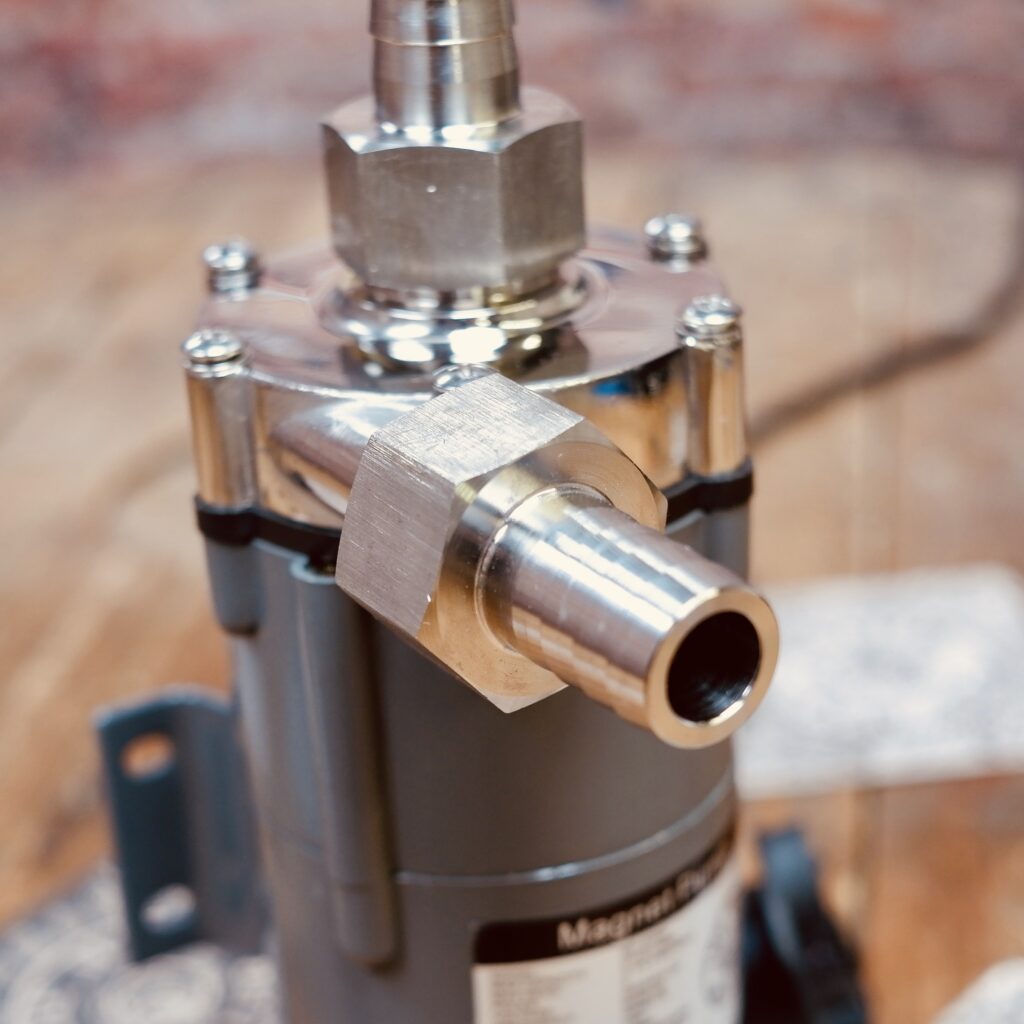

Flow direction, in the centre port, out the top port

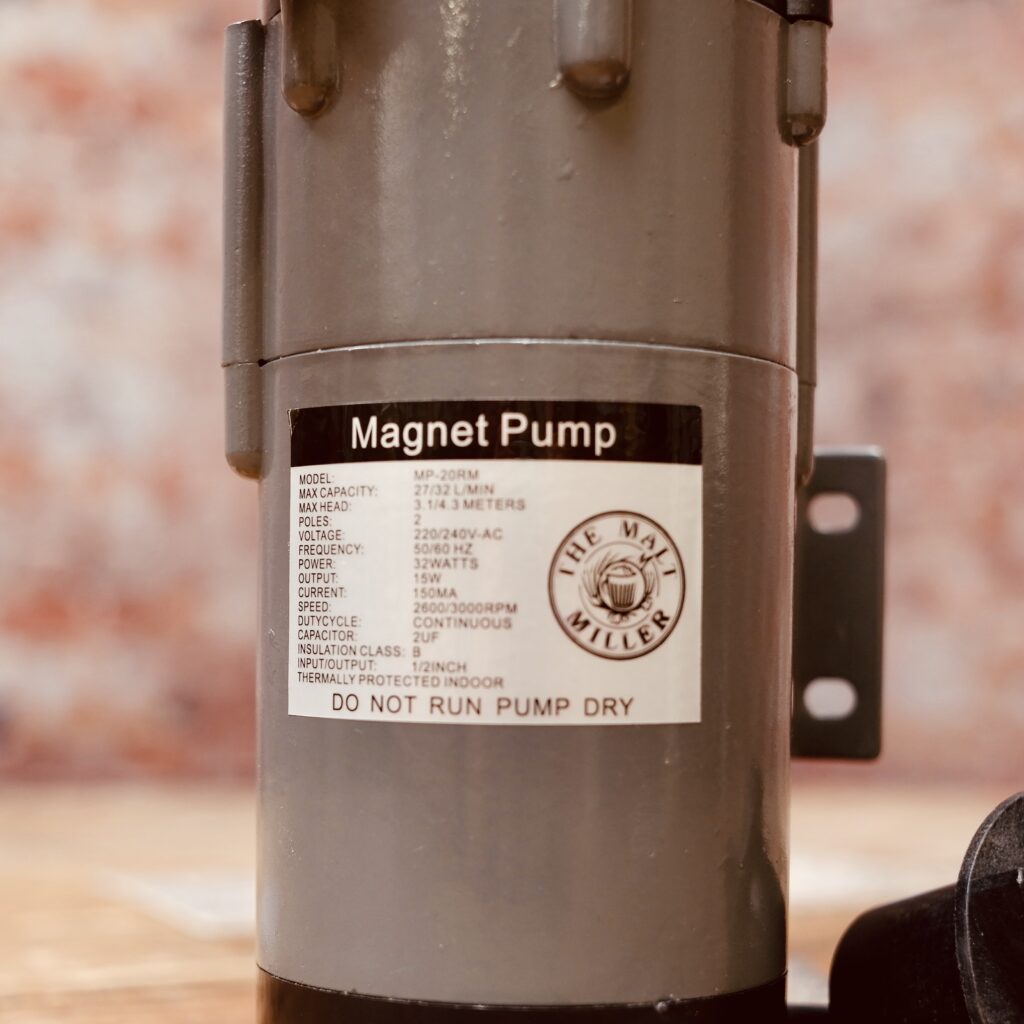

Operating voltage 220240 AC @ 10W IPX4 rated.
