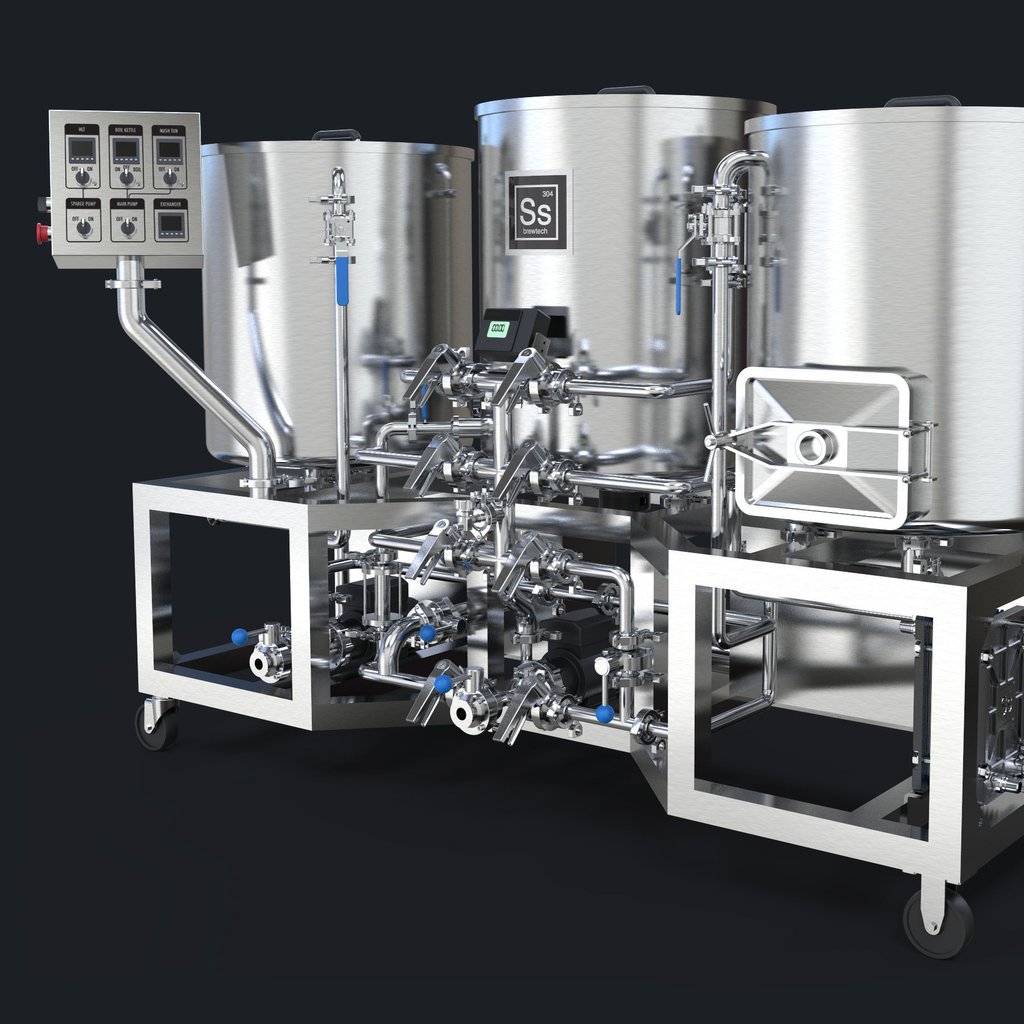

Ss Brewtech 1bbl Nano Brewhouse
Pre order now for despatch end of May – Beginning June 2020
When Ss Brewtech began designing the 1bbl Nano Brewhouse they new they didn’t want to simply scale up their home brew equipment.Instead they took all they had learnt from designing, operating and executing full size professional brewhouses throughout the States. The result of this approach is the industries first professional grade nano brewhouse.
3 heating elements (Boil Kettle, HLT, and RIMS)
Tangential whirlpool port
Stainless hard pipping throughout with valve tree
Perlick Style sampling valve
Detachable CIP arm
Combo Vorlauf/Strike water fill port
Dedicated underlet leg
Proportional heating element control with Omron PID Controllers combined with dynamic voltage adjustability
Main control panel with HLT, Mash, Kettle, and heat exchanger temp readouts
Dedicated pump control switches
Dual cart mounted electrical service panels
Ships fully assembled and ready to brew
1 bbl final batch size
20% kettle headspace
2.5mm kettle wall thickness
2B Mill Finish
1” process piping
1” ID butterfly valves, sight glasses, and TC gaskets
1 Square Meter Heat Exchanger surface area
74″ width x 51″ height x 40″ depth ( 188cm x 130cm x 102cm )
380 V – 32 A
Heating & Internal Calandria
Ss Brewtech designed the heat sources and electrical framework of the 1 BBL brewhouse to enable the brewer precise control over each temperature and process. At the core of that objective are independent heating elements for each vessel, allowing the user to dial in the perfect strike and sparge temp in the HLT, sustain or step mash temps through the integrated RIMS tube, or modulate the perfect rolling boil via the proportional heat control in the kettle.
Drawing from research and development in their pro brewing business, the Ss Brewtech Engineering Team outfitted the 1 bbl Brewhouse with a custom center-mounted element which is shrouded by an internal calandria. Convection forces the wort up from the bottom of the kettle through the calandria’s tube, where the wort is then super-heated and dispersed – yielding increased wort circulation, volatile compounds boiling off more efficiently, and greater hop utilization.
Patent Pending Valve Tree
Drawing from the brewer-centric design of our Ss Brewtech pro brewhouses lead them to the key design feature of this system, the valve tree. Placing all the critical process valves in one central location makes the brew day intuitive and enjoyable. The control panel is a scaled down version from their larger pro brewhouses. The entire brewhouse is built upon a network of sanitary welded and fully hard pipped TC connections. The integral hard piping matched with a fully welded frame provides a fit and finish never before seen in a 1 bbl brewhouse.
Milled False Bottom & Grain-Out
You won’t find a punched false bottom on any of the professional brewhouses they design, and Ss Brewtech felt there was no place for one on the nano brewhouse. The precision milled false bottom allows for a faster vorlauf, clearer run off, and mitigates the risk of a stuck sparge. The pro inspired grain-out door allows for quick and easy clean up. Tip and dump, or scooping grain from the top of a mash tun are a thing of the past.
FULL SANITARY HARD PIPING WITH Ss BREWTECH PATENT PENDING VALVE TREE
MILLED PLATE FALSE BOTTOM WITH GRAIN OUT DOOR
ROTATABLE KETTLE PICK-UP TUBE
ELECTRIC HEATING ELEMENTS FOR HLT, RIMS, AND INTERNAL CALANDRIA
FRAME-MOUNTED CHUGGER MAX SANITARY PUMPS AND PLATE HEAT EXCHANGER
